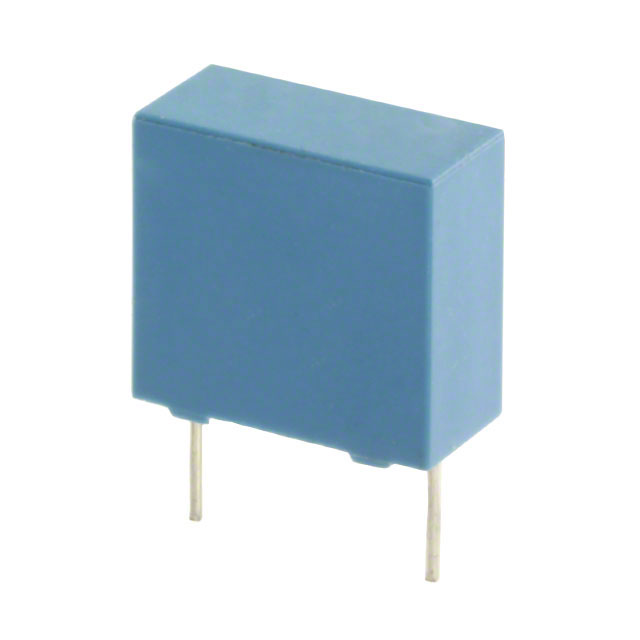

B32641B6153J
ActiveEPCOS - TDK Electronics
CAP FILM 0.015UF 5% 630VDC RAD
B32641B6153J
ActiveEPCOS - TDK Electronics
CAP FILM 0.015UF 5% 630VDC RAD
Description
General part information
B32641B6153J
0.015 µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | B32641B6153J |
|---|---|
| Applications | Switching, High Frequency |
| Capacitance | 0.015 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 0.433 in |
| Lead Spacing | 0.394 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.512 in |
| Size / Dimension Width | 0.197 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 400 Vpk |
| Voltage Rating - DC | 630 V |
