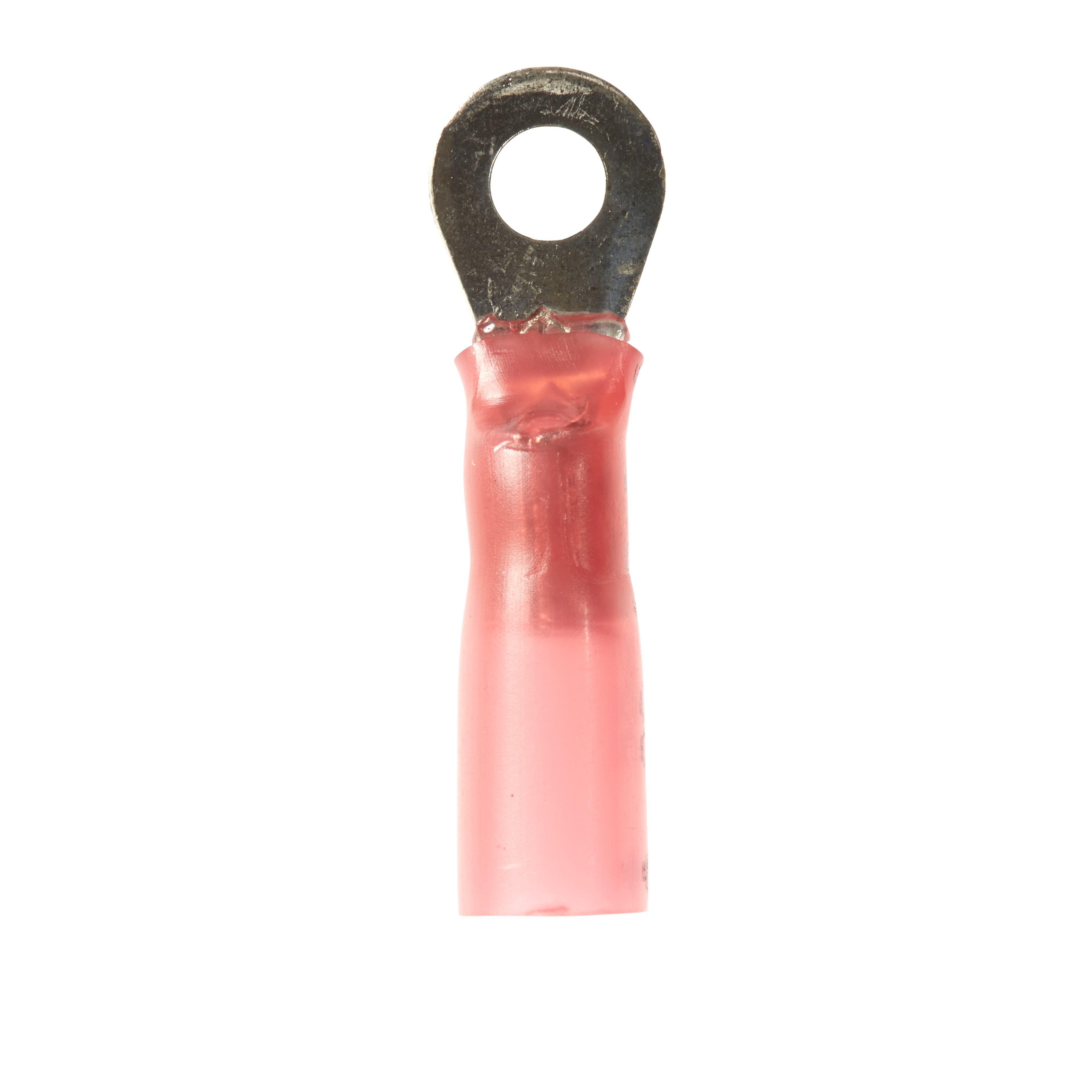

MH18-6R/LX-BOTTLE
Active3M Electronic Specialty
CONN RING CIRC 18-22AWG #6 25PC
MH18-6R/LX-BOTTLE
Active3M Electronic Specialty
CONN RING CIRC 18-22AWG #6 25PC
Description
General part information
MH18-6R/LX-BOTTLE
CONN RING CIRC 18-22AWG #6 25PC
Technical Specifications
Parameters and characteristics for this part
| Specification | MH18-6R/LX-BOTTLE |
|---|---|
| Color | Red |
| Contact Finish | Tin |
| Contact Material | Copper, ETP |
| Features | Brazed Seam |
| Insulation | Insulated with Heat Shrink |
| Length - Overall | 1 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.03 in |
| Width - Outer Edges | 0.31 in |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
