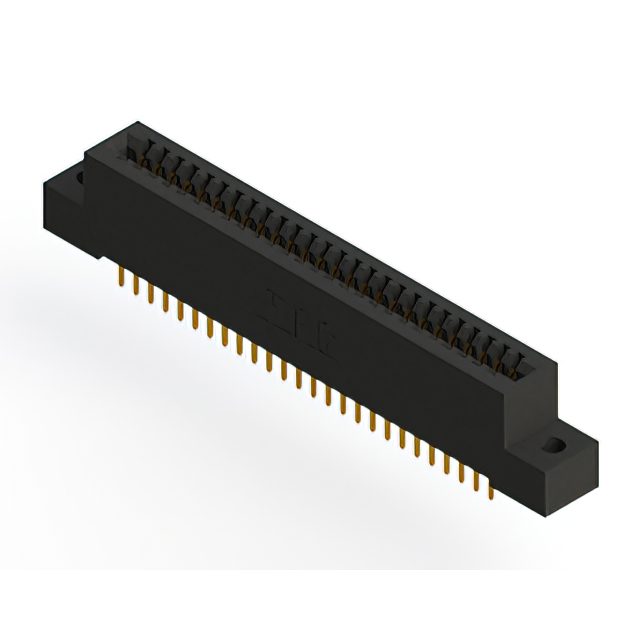

392-052-521-202
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 52 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, BLACK INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
392-052-521-202
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 52 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, BLACK INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 392-052-521-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 52 |
| Number of Positions/Bay/Row [custom] | 26 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
392-052 Series
...
| Part | Number of Positions/Bay/Row [custom] | Contact Material | Features | Termination | Mounting Type | Termination Rows | Pitch [x] | Pitch [x] | Gender | Color | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Read Out | Number of Rows | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 26 | Copper Alloy | Card Extender | Solder | Board Edge Straddle Mount | 2 | 2.54 mm | 0.1 in | Female | Black | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Dual | 2 | Non Specified - Dual Edge | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Gold |
EDAC Inc. | 52 | Copper Alloy | Solder | Through Hole | 1 | 2.54 mm | 0.1 in | Female | Black | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Single | 1 | Non Specified - Single Edge | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Gold | |
EDAC Inc. | 26 | Copper Alloy | Card Extender | Solder | Board Edge Straddle Mount | 2 | 2.54 mm | 0.1 in | Female | Black | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Dual | 2 | Non Specified - Dual Edge | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Flush Mount M3 Threaded Insert Top Opening | Gold | ||
EDAC Inc. | 52 | Copper Alloy | Wire Wrap | Through Hole | 1 | 2.54 mm | 0.1 in | Female | Black | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Single | 1 | Non Specified - Single Edge | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Gold | |||
EDAC Inc. | 26 | Copper Alloy | Solder | Through Hole | 2 | 2.54 mm | 0.1 in | Female | Black | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Dual | 2 | Non Specified - Dual Edge | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Gold | |||
EDAC Inc. | 26 | Copper Alloy | Solder | Through Hole | 2 | 2.54 mm | 0.1 in | Female | Black | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Dual | 2 | Non Specified - Dual Edge | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Gold | ||||
EDAC Inc. | 52 | Copper Alloy | Wire Wrap | Through Hole | 1 | 2.54 mm | 0.1 in | Female | Black | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Single | 1 | Non Specified - Single Edge | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Gold | |
EDAC Inc. | 26 | Copper Alloy | Solder Wire Wrap | Through Hole Right Angle | 2 | 2.54 mm | 0.1 in | Female | Black | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Dual | 2 | Non Specified - Dual Edge | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Gold | |||
EDAC Inc. | 26 | Copper Alloy | Solder | Through Hole | 2 | 2.54 mm | 0.1 in | Female | Black | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Dual | 2 | Non Specified - Dual Edge | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Gold | |
EDAC Inc. | 52 | Copper Alloy | Wire Wrap | Through Hole | 1 | 2.54 mm | 0.1 in | Female | Black | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Single | 1 | Non Specified - Single Edge | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 11.59 | |
Description
General part information
392-052 Series
52 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
