9202-05-20
ActiveCoto Technology

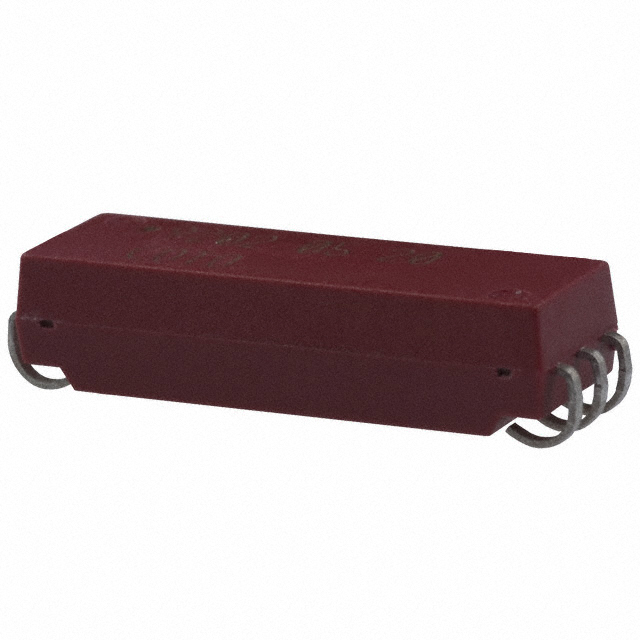

REED RELAY, SPST-NO, 5 VDC, 9200 SERIES, SURFACE MOUNT, 150 OHM, 500 MA
Deep-Dive with AI
Search across all available documentation for this part.
9202-05-20
ActiveCoto Technology
REED RELAY, SPST-NO, 5 VDC, 9200 SERIES, SURFACE MOUNT, 150 OHM, 500 MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9202-05-20 |
|---|---|
| Coil Current | 33.3 mA |
| Coil Resistance | 150 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 0.5 A |
| Features | Sealed - Hermetically |
| Mounting Type | Surface Mount |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.4 VDC |
| Operate Time | 0.4 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 0.1 ms |
| Switching Voltage | 200 VDC, 200 VAC |
| Termination Style | J Lead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
9202-05-20
REED RELAY, SPST-NO, 5 VDC, 9200 SERIES, SURFACE MOUNT, 150 OHM, 500 MA
