SCE016XD3DB3S
ActiveMallory Sonalert Products Inc.

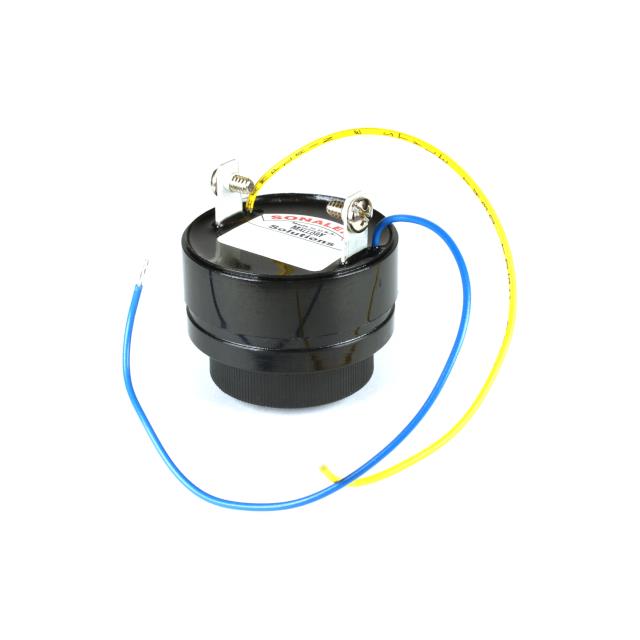

BUZZER PIEZO 42.85MM PNL MNT
SCE016XD3DB3S
ActiveMallory Sonalert Products Inc.
BUZZER PIEZO 42.85MM PNL MNT
Description
General part information
SCE016XD3DB3S
Buzzers Indicator, Internally Driven Piezo 40mA 2.9kHz 95dB @ 6V, 61cm Panel Mount Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | SCE016XD3DB3S |
|---|---|
| Approval Agency | cUL, UL |
| Current - Supply | 40 mA |
| Driver Circuitry | Indicator, Internally Driven |
| Duration | 1 PPS |
| Frequency | 2.9 kHz |
| Height - Seated (Max) | 1.399 in |
| Input Type | DC |
| Mounting Type | Panel Mount |
| Operating Mode | Single Tone, Pulse, Slow |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Port Location | Top |
| Size / Dimension Diameter | 1.687 in |
| Sound Pressure Level (SPL) | 95 dB |
| Technology | Piezo |
| Termination | Screw Terminal, Quick Connect Tab - (6.35mm) |
| Termination Probe Tip OD | 0.25 in |
| Voltage Range (Max) | 16 V |
| Voltage Range (Min) | 6 VDC |
