Description
General part information

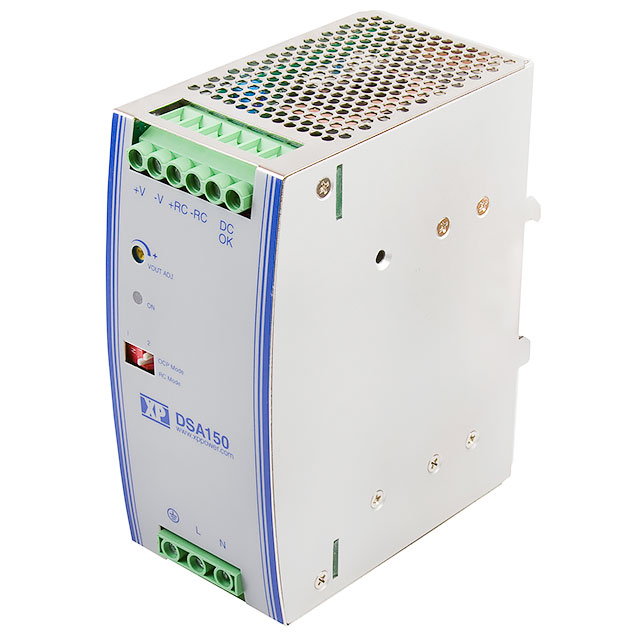

DSA150PS24
AC/DC DIN RAIL SUPPLY 24V 150W
Technical Specifications
Parameters and characteristics for this part
| Specification | DSA150PS24 |
|---|---|
| AC Voltage - Input (Max) | 264 VAC |
| AC Voltage - Input (Min) | 90 VAC |
| Applications | ITE (Commercial) |
| Current - Output (Max) | 6.25 A |
| Efficiency | 87 % |
| Features | Universal Input, Remote On/Off, Adjustable Output, PFC |
| Input Type | AC |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Power (Watts) | 150 W |
| Size / Dimension Height | 4.92 in |
| Size / Dimension Length | 3.92 in |
| Size / Dimension Width | 2.18 in |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 24 V |
