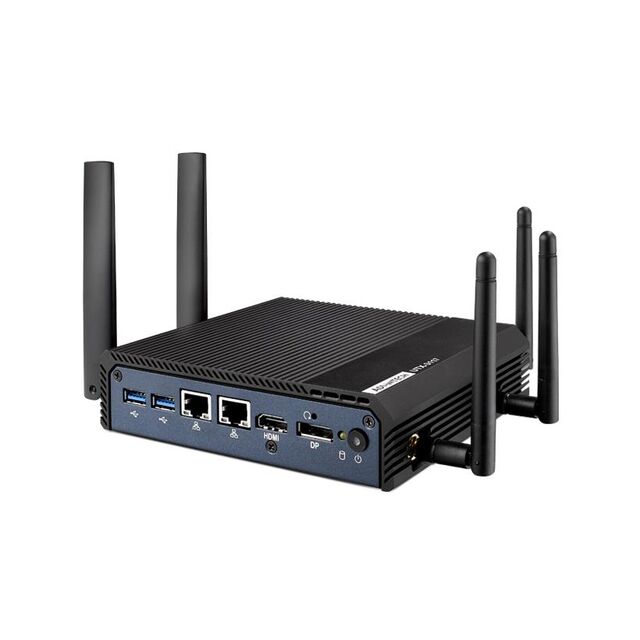

UTX-3117FS-S6A2N

Active

Advantech Corp

INTEL ATOM PLATFORM WITH DUAL GBE LAN BOX PCS

Search across all available documentation for this part.

Active

Advantech Corp

INTEL ATOM PLATFORM WITH DUAL GBE LAN BOX PCS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UTX-3117FS-S6A2N	UTX-3117 Series

Core Processor	Intel Celeron N3350	Intel Celeron N3350, Intel Pentium N4200
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps	10 - 1000 Mbps
Expansion Site/Bus	mPCIe, M.2	mPCIe, M.2
Form Factor	Palm-Size	Palm-Size
Number of Cores	2	2 - 4
Power (Watts)	7.32 W	7.32 W
RAM Capacity/Installed	4 GB, 0 GB	0 - 4 GB
RS-232 (422, 485)	2	2
Size / Dimension [x]	123.19 mm	123.19 mm
Size / Dimension [x]	4.85 "	4.85 "
Size / Dimension [y]	129.03 mm	129.03 mm
Size / Dimension [y]	5.08 in	5.08 in
Speed	1.1 GHz	1.1 GHz
Storage Interface	2.5" SATA SDD, mSATA	2.5" SATA SDD, mSATA
USB	USB 3.0 (2)	USB 3.0 (2)
Video Outputs	DP, HDMI	DP, HDMI
Watchdog Timer	False	False

INTEL ATOM PLATFORM WITH DUAL GBE LAN BOX PCS

Part	Ethernet	Core Processor	Power (Watts)	Video Outputs	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Cores	Storage Interface	USB	Form Factor	RAM Capacity/Installed	Speed	RS-232 (422, 485)	Expansion Site/Bus
Advantech Corp UTX-3117FS-S6A2N	10 Mbps, 100 Mbps, 1000 Mbps	Intel Celeron N3350	7.32 W	DP, HDMI	129.03 mm	5.08 in	123.19 mm	4.85 "	2	2.5" SATA SDD, mSATA	USB 3.0 (2)	Palm-Size	0 GB, 4 GB	1.1 GHz	2	M.2, mPCIe
Advantech Corp UTX-3117SA4-S6A2N	10 Mbps, 100 Mbps, 1000 Mbps	Intel Celeron N3350	7.32 W	DP, HDMI	129.03 mm	5.08 in	123.19 mm	4.85 "	2	2.5" SATA SDD, mSATA	USB 3.0 (2)	Palm-Size	0 GB, 4 GB	1.1 GHz	2	M.2, mPCIe
Advantech Corp UTX-3117SA4-S6A1N	10 Mbps, 100 Mbps, 1000 Mbps	Intel Pentium N4200	7.32 W	DP, HDMI	129.03 mm	5.08 in	123.19 mm	4.85 "	4	2.5" SATA SDD, mSATA	USB 3.0 (2)	Palm-Size	0 GB, 4 GB	1.1 GHz	2	M.2, mPCIe
Advantech Corp UTX-3117FS-S6A1N	10 Mbps, 100 Mbps, 1000 Mbps	Intel Pentium N4200	7.32 W	DP, HDMI	129.03 mm	5.08 in	123.19 mm	4.85 "	4	2.5" SATA SDD, mSATA	USB 3.0 (2)	Palm-Size	0 GB, 4 GB	1.1 GHz	2	M.2, mPCIe

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 588.98

General part information

Single Board Computer 1.1GHz 2 Core 4GB/0GB RAM Intel Celeron N3350
