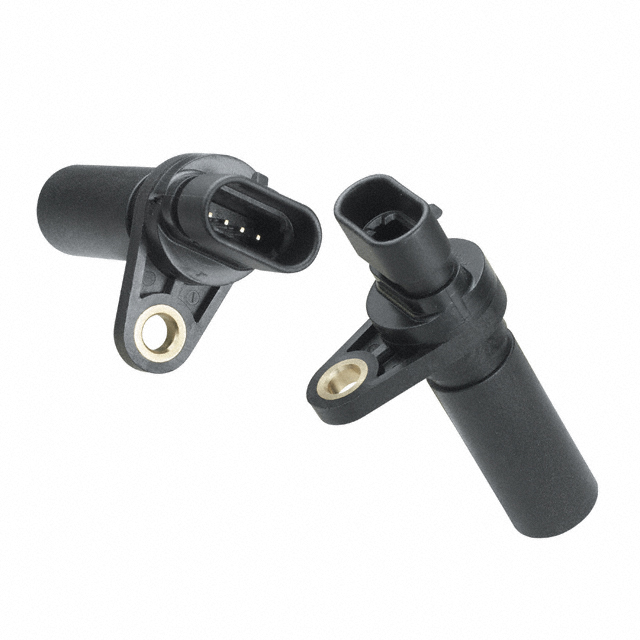

SD101201
ActiveZF Electronics
SENSOR HALL DIGITAL CONNECTOR
SD101201
ActiveZF Electronics
SENSOR HALL DIGITAL CONNECTOR
Description
General part information
SD101201
SENSOR HALL DIGITAL CONNECTOR
Technical Specifications
Parameters and characteristics for this part
| Specification | SD101201 |
|---|---|
| Actuator Material | Gear Tooth, Ferrous Metals |
| Frequency | 15 kHz |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Digital |
| Package / Case | Flange Mount |
| Termination Style | Connector |
| Type | Hall Effect Sensor |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
