1-1123722-5
ActiveTE Connectivity AMP Connectors
3.96 EP PLUG HSG 5P(NATURAL) ROHS COMPLIANT: YES
1-1123722-5
ActiveTE Connectivity AMP Connectors
3.96 EP PLUG HSG 5P(NATURAL) ROHS COMPLIANT: YES
Description
General part information
1-1123722-5

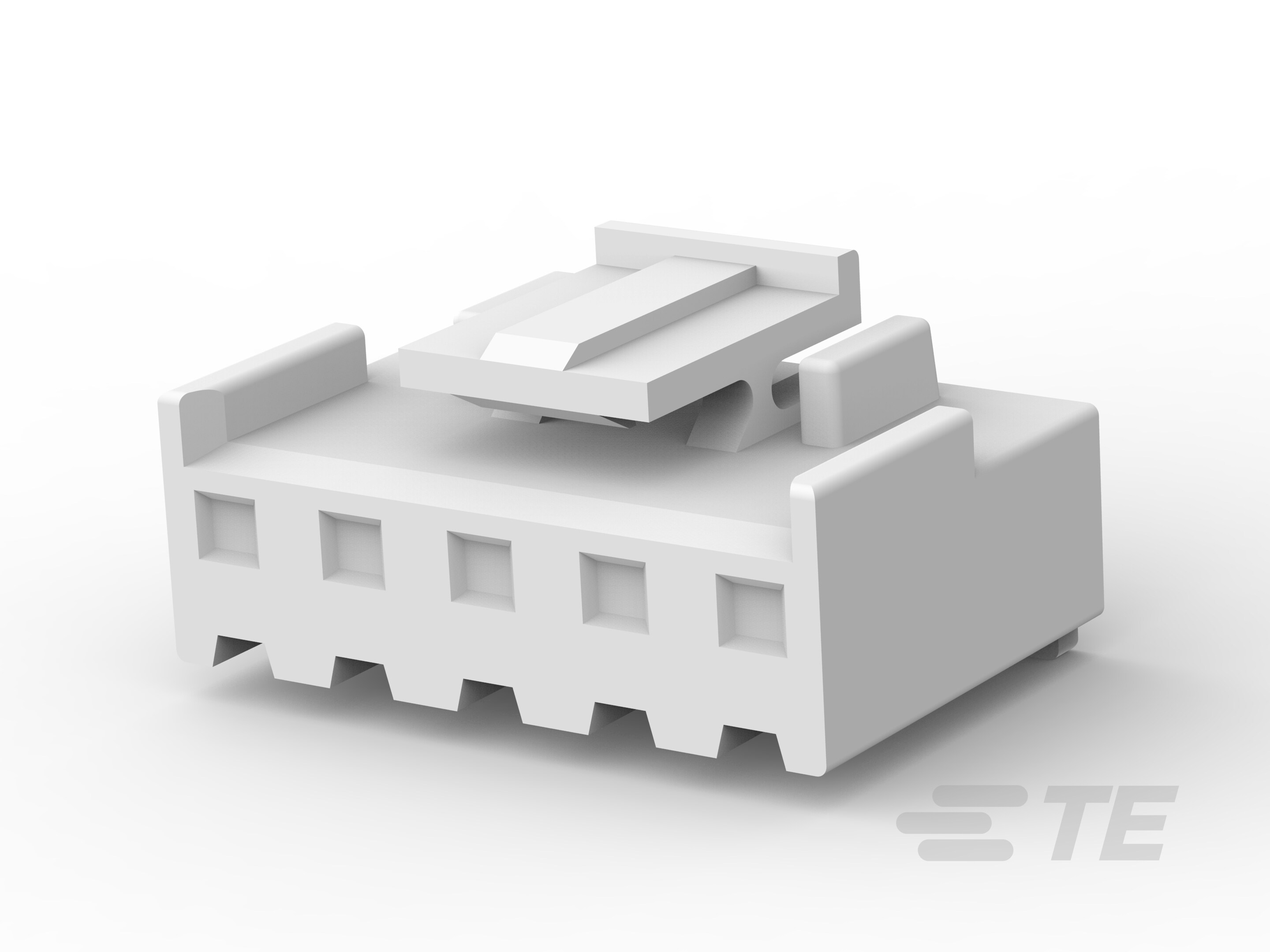

Housing, Plug, Wire-to-Board, 5 Position, 3.95 mm [.155 in] Centerline, Crimp, 1 Row, Natural, Wire & Cable, Cable Mount (Free-Hanging), Economy Power
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1123722-5 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Pitch | 0.156 in |
