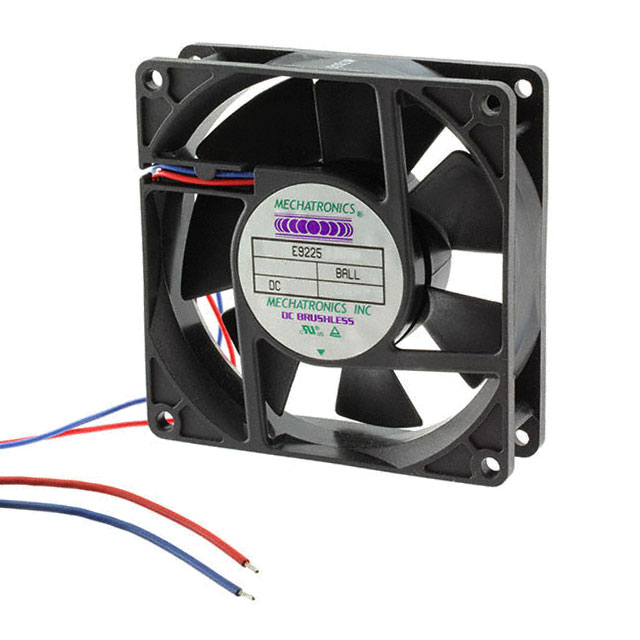

E9225X48B-FSR

Active

Mechatronics Fan Group

FAN AXIAL 92X25MM 48VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AC/DC Fans & Blowers Catalog +1

E9225X48B-FSR

Active

Mechatronics Fan Group

FAN AXIAL 92X25MM 48VDC WIRE

Deep-Dive with AI

DocumentsDatasheet AC/DC Fans & Blowers Catalog +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.95

Description

General part information

E9225 Series

Fan Tubeaxial 48VDC Square - 92mm L x 92mm H Ball 60.0 CFM (1.68m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Datasheet

AC/DC Fans & Blowers Catalog

Datasheet

DC Fan, Blower Lead Wire Spec

Datasheet

Specification	E9225X48B-FSR	E9225 Series

Air Flow	60 CFM	44 - 60 CFM
Air Flow	1.68 mł/min	1.23 - 1.68 mł/min
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	-	0.065 - 360 A
Fan Type	Tubeaxial	Tubeaxial
Features	Thermal Overload Protector (TOP)	Speed Sensor (Tach), Thermal Overload Protector (TOP), Locked Rotor Sensor, Thermistor, Conformal Coating, Alarm Sensor
Ingress Protection	-	IP57 - Dust Protected, Waterproof
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	43 dB	32 - 43 dB
RPM	4000 RPM	2800 - 4000 RPM
Static Pressure	0.32 in H2O	0.19 - 0.32 in H2O
Static Pressure	79.7 Pa	47.3 - 79.7 Pa
Termination	2 Wire Leads	3 Wire Leads, 2 Wire Leads, 4 Wire Leads
Voltage - Rated	-	12 - 24 VDC
Voltage - Rated [custom]	48 VDC	48 VDC
Weight	0.245 lb	0.245 lb
Weight	111.13 g	111.13 g
Width [y]	25 mm	25 mm

Part	Static Pressure	Static Pressure	Voltage - Rated [custom]	Noise	Air Flow	Air Flow	RPM	Weight	Weight	Termination	Bearing Type	Fan Type	Material - Blade	Current Rating (Amps)	Features	Approval Agency	Width [y]	Voltage - Rated
Mechatronics Fan Group E9225H48B1-FSR	59.8 Pa	0.24 in H2O	48 VDC	36 dB	1.43 mł/min	51 CFM	3200 RPM	0.245 lb	111.13 g	3 Wire Leads	Ball	Tubeaxial	Polybutylene Terephthalate (PBT)	0.065 A	Speed Sensor (Tach), Thermal Overload Protector (TOP)	CE, cUL, TUV, UL	25 mm
Mechatronics Fan Group E9225H12B-FSR	59.8 Pa	0.24 in H2O		36 dB	1.43 mł/min	51 CFM	3200 RPM	0.245 lb	111.13 g	2 Wire Leads	Ball	Tubeaxial	Polybutylene Terephthalate (PBT)	360 mA	Thermal Overload Protector (TOP)	CE, cUL, TUV, UL	25 mm	12 VDC
Mechatronics Fan Group E9225E24B2-FSR	69.7 Pa	0.28 in H2O		39 dB(A)	1.57 mł/min	56 CFM	3600 RPM	0.245 lb	111.13 g	3 Wire Leads	Ball	Tubeaxial	Polybutylene Terephthalate (PBT)	0.255 A	Locked Rotor Sensor, Thermal Overload Protector (TOP)	CE, cUL, TUV, UL	25 mm	24 VDC
Mechatronics Fan Group E9225H12B3-FSR	59.8 Pa	0.24 in H2O		36 dB	1.43 mł/min	51 CFM	3200 RPM	0.245 lb	111.13 g	2 Wire Leads	Ball	Tubeaxial	Polybutylene Terephthalate (PBT)	360 mA	Thermal Overload Protector (TOP), Thermistor	CE, cUL, TUV, UL	25 mm	12 VDC
Mechatronics Fan Group E9225M24B2-FSR	47.3 Pa	0.19 in H2O		32 dB	1.23 m³/min	44 CFM	2800 RPM	0.245 lb	111.13 g	3 Wire Leads	Ball	Tubeaxial	Polybutylene Terephthalate (PBT)	125 mA	Locked Rotor Sensor, Thermal Overload Protector (TOP)	CE, cUL, TUV, UL	25 mm	24 VDC
Mechatronics Fan Group E9225M12B-FSR	47.3 Pa	0.19 in H2O		32 dB	1.23 m³/min	44 CFM	2800 RPM	0.245 lb	111.13 g	2 Wire Leads	Ball	Tubeaxial	Polybutylene Terephthalate (PBT)	0.235 A	Thermal Overload Protector (TOP)	CE, cUL, TUV, UL	25 mm	12 VDC
Mechatronics Fan Group E9225E24B-FSR	69.7 Pa	0.28 in H2O		39 dB(A)	1.57 mł/min	56 CFM	3600 RPM	0.245 lb	111.13 g	2 Wire Leads	Ball	Tubeaxial	Polybutylene Terephthalate (PBT)	0.255 A	Thermal Overload Protector (TOP)	CE, cUL, TUV, UL	25 mm	24 VDC
Mechatronics Fan Group E9225E24B1-FSR	69.7 Pa	0.28 in H2O		39 dB(A)	1.57 mł/min	56 CFM	3600 RPM	0.245 lb	111.13 g	3 Wire Leads	Ball	Tubeaxial	Polybutylene Terephthalate (PBT)	0.255 A	Speed Sensor (Tach), Thermal Overload Protector (TOP)	CE, cUL, TUV, UL	25 mm	24 VDC
Mechatronics Fan Group E9225X24B-FSR	79.7 Pa	0.32 in H2O		43 dB	1.68 mł/min	60 CFM	4000 RPM	0.245 lb	111.13 g	2 Wire Leads	Ball	Tubeaxial	Polybutylene Terephthalate (PBT)		Thermal Overload Protector (TOP)	CE, cUL, TUV, UL	25 mm	24 VDC
Mechatronics Fan Group E9225E12B-FSR	69.7 Pa	0.28 in H2O		39 dB(A)	1.57 mł/min	56 CFM	3600 RPM	0.245 lb	111.13 g	2 Wire Leads	Ball	Tubeaxial	Polybutylene Terephthalate (PBT)	0.498 A	Thermal Overload Protector (TOP)	CE, cUL, TUV, UL	25 mm	12 VDC

Part

Static Pressure

Voltage - Rated [custom]

Noise

Air Flow

RPM

Weight

Termination

Bearing Type

Fan Type

Material - Blade

Current Rating (Amps)

Features

Approval Agency

Width [y]

Voltage - Rated

Ingress Protection

Mechatronics Fan Group

E9225H48B1-FSR

59.8 Pa

0.24 in H2O

48 VDC

36 dB

1.43 mł/min

51 CFM

3200 RPM

0.245 lb

111.13 g

3 Wire Leads

Ball

Tubeaxial

Polybutylene Terephthalate (PBT)

0.065 A

Speed Sensor (Tach), Thermal Overload Protector (TOP)

CE, cUL, TUV, UL

25 mm

Mechatronics Fan Group

E9225H12B-FSR

59.8 Pa

0.24 in H2O

36 dB

1.43 mł/min

51 CFM

3200 RPM

0.245 lb

111.13 g

2 Wire Leads

Ball

Tubeaxial

Polybutylene Terephthalate (PBT)

360 mA

Thermal Overload Protector (TOP)

CE, cUL, TUV, UL

25 mm

12 VDC

Mechatronics Fan Group

E9225E24B2-FSR

69.7 Pa

0.28 in H2O

39 dB(A)

1.57 mł/min

56 CFM

3600 RPM

0.245 lb

111.13 g

3 Wire Leads

Ball

Tubeaxial

Polybutylene Terephthalate (PBT)

0.255 A

Locked Rotor Sensor, Thermal Overload Protector (TOP)

CE, cUL, TUV, UL

25 mm

24 VDC

Mechatronics Fan Group

E9225H12B3-FSR

59.8 Pa

0.24 in H2O

36 dB

1.43 mł/min

51 CFM

3200 RPM

0.245 lb

111.13 g

2 Wire Leads

Ball

Tubeaxial

Polybutylene Terephthalate (PBT)

360 mA

Thermal Overload Protector (TOP), Thermistor

CE, cUL, TUV, UL

25 mm

12 VDC

Mechatronics Fan Group

E9225M24B2-FSR

47.3 Pa

0.19 in H2O

32 dB

1.23 m³/min

44 CFM

2800 RPM

0.245 lb

111.13 g

3 Wire Leads

Ball

Tubeaxial

Polybutylene Terephthalate (PBT)

125 mA

Locked Rotor Sensor, Thermal Overload Protector (TOP)

CE, cUL, TUV, UL

25 mm

24 VDC

Mechatronics Fan Group

E9225M12B-FSR

47.3 Pa

0.19 in H2O

32 dB

1.23 m³/min

44 CFM

2800 RPM

0.245 lb

111.13 g

2 Wire Leads

Ball

Tubeaxial

Polybutylene Terephthalate (PBT)

0.235 A

Thermal Overload Protector (TOP)

CE, cUL, TUV, UL

25 mm

12 VDC

Mechatronics Fan Group

E9225E24B-FSR

69.7 Pa

0.28 in H2O

39 dB(A)

1.57 mł/min

56 CFM

3600 RPM

0.245 lb

111.13 g

2 Wire Leads

Ball

Tubeaxial

Polybutylene Terephthalate (PBT)

0.255 A

Thermal Overload Protector (TOP)

CE, cUL, TUV, UL

25 mm

24 VDC

Mechatronics Fan Group

E9225E24B1-FSR

69.7 Pa

0.28 in H2O

39 dB(A)

1.57 mł/min

56 CFM

3600 RPM

0.245 lb

111.13 g

3 Wire Leads

Ball

Tubeaxial

Polybutylene Terephthalate (PBT)

0.255 A

Speed Sensor (Tach), Thermal Overload Protector (TOP)

CE, cUL, TUV, UL

25 mm

24 VDC

Mechatronics Fan Group

E9225X24B-FSR

79.7 Pa

0.32 in H2O

43 dB

1.68 mł/min

60 CFM

4000 RPM

0.245 lb

111.13 g

2 Wire Leads

Ball

Tubeaxial

Polybutylene Terephthalate (PBT)

Thermal Overload Protector (TOP)

CE, cUL, TUV, UL

25 mm

24 VDC

Mechatronics Fan Group

E9225E12B-FSR

69.7 Pa

0.28 in H2O

39 dB(A)

1.57 mł/min

56 CFM

3600 RPM

0.245 lb

111.13 g

2 Wire Leads

Ball

Tubeaxial

Polybutylene Terephthalate (PBT)

0.498 A

Thermal Overload Protector (TOP)

CE, cUL, TUV, UL

25 mm

12 VDC
