EN3P16MRAPCBN

Active

Switchcraft Inc.

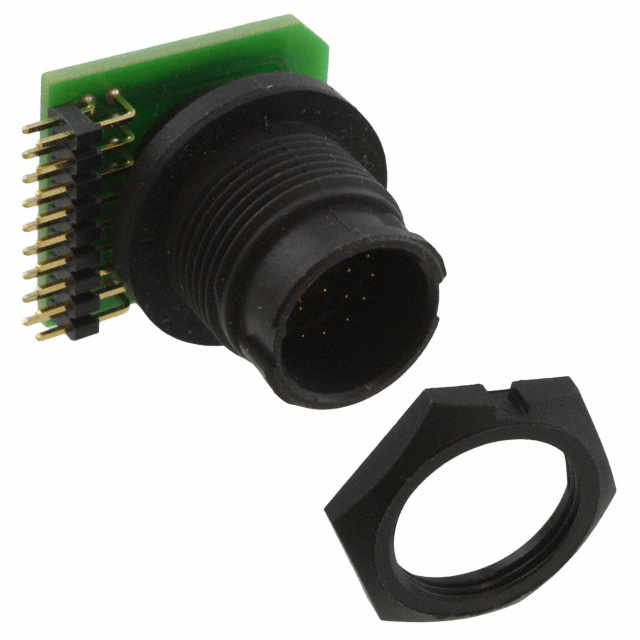

CONN RCPT MALE 16POS GOLD SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 18.39

Description

General part information

EN3P16 Series

16 Position Circular Connector Receptacle, Male Pins Circuit Board, Solder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3P16MRAPCBN	EN3P16 Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	2 A	2 - 3 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	16	16
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Circuit Board, Solder	Circuit Board, Solder
Voltage Rating	250 VAC	250 VAC

EN3P16 Series

CONN RCPT MALE 16POS GOLD SOLDER

Part	Number of Positions	Mounting Type	Connector Type	Termination	Color	Contact Material	Fastening Type	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Current Rating (Amps)	Orientation	Shielding	Voltage Rating	Insert Material	Material Flammability Rating	Ingress Protection	Mounting Feature	Contact Finish - Mating
Switchcraft Inc. EN3P16MRAPCBN	16	Panel Mount, Right Angle, Through Hole	Male Pins, Receptacle	Circuit Board, Solder	Black	Copper Alloy	Bayonet Lock	Plastic	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	2 A	Keyed	Unshielded	250 VAC	Elastomer	UL94 V-0	IP66/IP68	Bulkhead - Front Side Nut	Gold
Switchcraft Inc. EN3P16F26X	16		Receptacle, Female Sockets		Black	Copper Alloy	Bayonet Lock	Plastic	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	3 A	Keyed	Unshielded	250 VAC	Elastomer	UL94 V-0	IP66/IP68	Bulkhead - Front Side Nut	Gold
Switchcraft Inc. EN3P16M26SX	16		Male Pins, Receptacle		Black	Copper Alloy	Bayonet Lock	Plastic	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	3 A	Keyed	Unshielded	250 VAC	Elastomer	UL94 V-0	IP66/IP68	Bulkhead - Front Side Nut	Gold
Switchcraft Inc. EN3P16FRAPCBN	16	Panel Mount, Right Angle, Through Hole	Receptacle, Female Sockets	Circuit Board, Solder	Black	Copper Alloy	Bayonet Lock	Plastic	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	2 A	Keyed	Unshielded	250 VAC	Elastomer	UL94 V-0	IP66/IP68	Bulkhead - Front Side Nut	Gold
Switchcraft Inc. EN3P16F26SX	16		Receptacle, Female Sockets		Black	Copper Alloy	Bayonet Lock	Plastic	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	3 A	Keyed	Unshielded	250 VAC	Elastomer	UL94 V-0	IP66/IP68	Bulkhead - Front Side Nut	Gold
