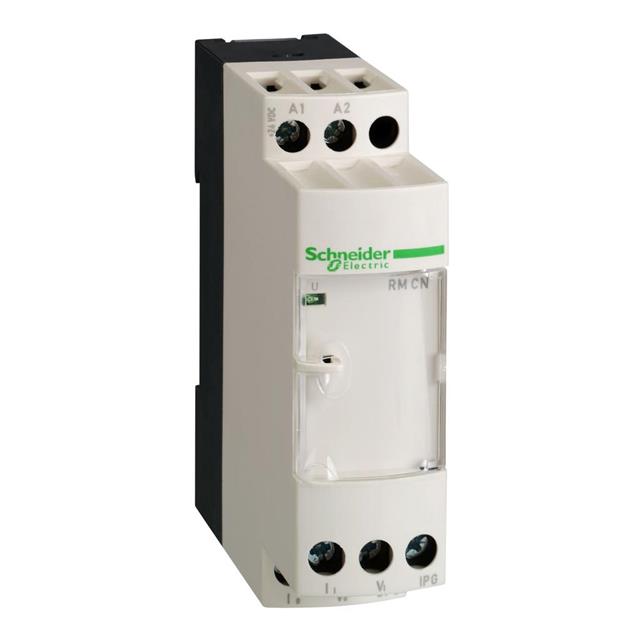

RMCN22BD
ActiveSCHNEIDER ELECTRIC
SIGNAL CONVERTER, CURRENT, VOLTAGE, CURRENT, VOLTAGE, 0.2 %, 24 VDC
RMCN22BD
ActiveSCHNEIDER ELECTRIC
SIGNAL CONVERTER, CURRENT, VOLTAGE, CURRENT, VOLTAGE, 0.2 %, 24 VDC
Description
General part information
RMCN22BD
SIGNAL CONVERTER, CURRENT, VOLTAGE, CURRENT, VOLTAGE, 0.2 %, 24 VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | RMCN22BD |
|---|---|
| Input Current Range (Maximum) | 20 mA |
| Input Current Range (Minimum) | 4 mA |
| Input Type | Voltage, Current |
| Input Voltage Range (Maximum) | 10 V |
| Input Voltage Range (Minimum) | 0 mV |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Current Range (Max) | 20 mA |
| Output Current Range (Min) | 4 mA |
| Output Type | Current, Voltage |
| Output Voltage Range (Max) | 10 V |
| Output Voltage Range (Min) | 0 V |
| Termination Style | Screw Terminal |
| Type | Signal Conditioner |
| Voltage - Supply | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
