FI212P082931-T
NRNDTaiyo Yuden
DIPLEXER , W-CDMA/CDMA/GSM/LTE<BR>/ISM900 ROHS COMPLIANT: YES
FI212P082931-T
NRNDTaiyo Yuden
DIPLEXER , W-CDMA/CDMA/GSM/LTE<BR>/ISM900 ROHS COMPLIANT: YES
Description
General part information

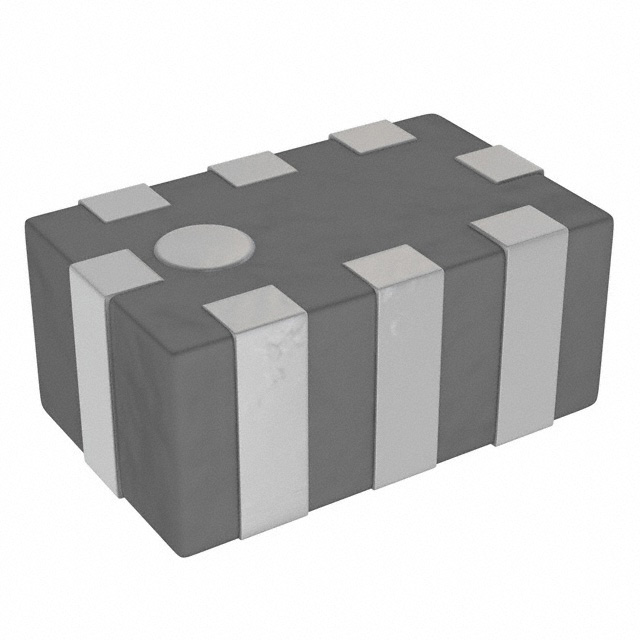

FI212P082931-T
RF Diplexer 698MHz ~ 960MHz / 1.42GHz ~ 2.69GHz 0805 (2012 Metric), 6 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | FI212P082931-T |
|---|---|
| Frequency Bands (High) Maximum | 2.69 GHz |
| Frequency Bands (High) Minimum | 1.42 GHz |
| Frequency Bands (Low) Maximum | 960 MHz |
| Frequency Bands (Low) Minimum | 698 MHz |
| High Band Attenuation (Min) | 13 dB |
| Low Band Attenuation (Min) | 13 dB |
| Mounting Type | Surface Mount |
| Package Name | 0805 |
| Pad Count | 6 PC Pad |
| Type | Diplexer |
