796709-2

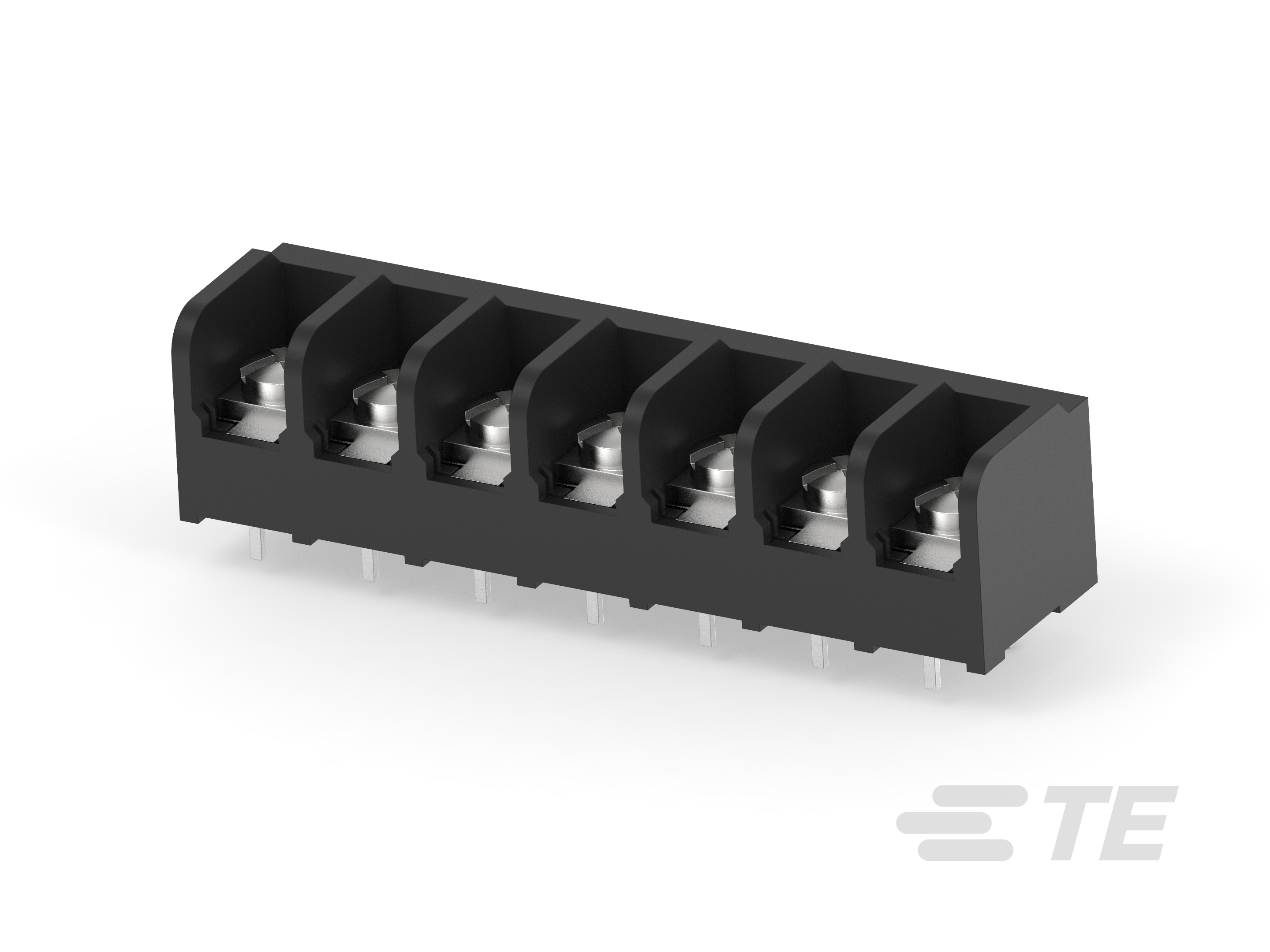

7 Position Barrier Strip, Tri-Barrier, Double Printed Circuit Pin Bottom Termination, Wire-to-Board, 11.1 mm [.438 in] Centerline, 1 Row, 600 V
Technical Specifications
Parameters and characteristics for this part
| Specification | 796709-2 |
|---|---|
| Barrier Type | 3 Wall (Tri) |
| Bottom Termination | PC Pin |
| Color | Black |
| Current Rating | 30 A |
| Number of Circuits | 7 |
| Number of Rows | 1 |
| Number of Wire Entries | 7 |
| Pitch | 0.438 in |
| Terminal Block Type | Barrier Block |
| Top Termination | Screws with Captive Plate |
| Voltage Rating | 600 V |
| Wire Gauge (AWG) (Max) | 18 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
