B82724A2202N001

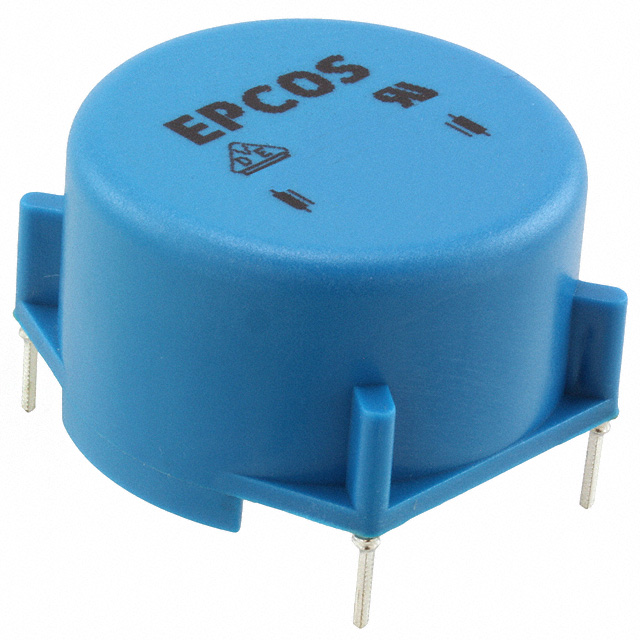

6.8 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 2A DCR 170mOhm (Typ)
Technical Specifications
Parameters and characteristics for this part
| Specification | B82724A2202N001 |
|---|---|
| Approval Agency | VDE, UR, ENEC |
| Current Rating (Max) | 2 A |
| DC Resistance (DCR) (Max) | 170 mOhm |
| DC Resistance (DCR) (Typ) | 170 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.776 in |
| Inductance | 6.8 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Horizontal |
| Package Leads | 4 Leads |
| Package Name | Horizontal |
| Size / Dimension Length | 1.303 in |
| Size / Dimension Width | 1.28 in |
| Voltage Rating - AC | 250 V |
