BK/HHX
ActiveFUSEHOLDER, IN-LINE, 32V, 48A, MAXI® FUSES, WIRE LEADED, BLACK, COVER
BK/HHX
ActiveFUSEHOLDER, IN-LINE, 32V, 48A, MAXI® FUSES, WIRE LEADED, BLACK, COVER
Description
General part information
BK/HHX

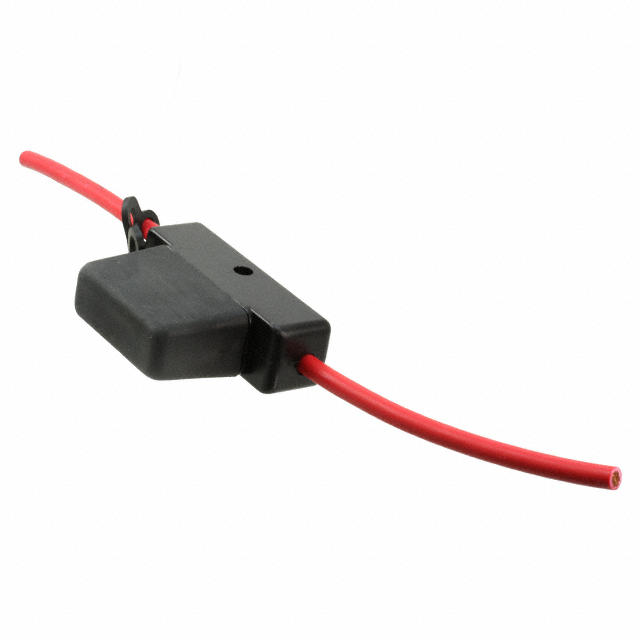

The BK/HHX is a 48A/32VDC In-line Fuse Holder with removable strap cover, wire leaded terminals and #6 red lead wire electrical connection. This HHX-series fuse holder for MAXI® fuses. Firewall mounting hole permits two or more holders to be mounted together. A fuse must be properly and fully inserted into the holder to provide a solid connection.
Technical Specifications
Parameters and characteristics for this part
| Specification | BK/HHX |
|---|---|
| Current Rating | 48 A |
| For Use With/Related Products | Maxi (ATX) |
| Fuse Length | 1.161 in |
| Fuse Type | Blade |
| Fuse Width | 0.374 in |
| Fuseholder Type | Holder |
| Mounting Type | Free Hanging (In-Line) |
| Number of Circuits | 1 |
| Termination Style | Wire Leads |
| Voltage | 32 VDC |
