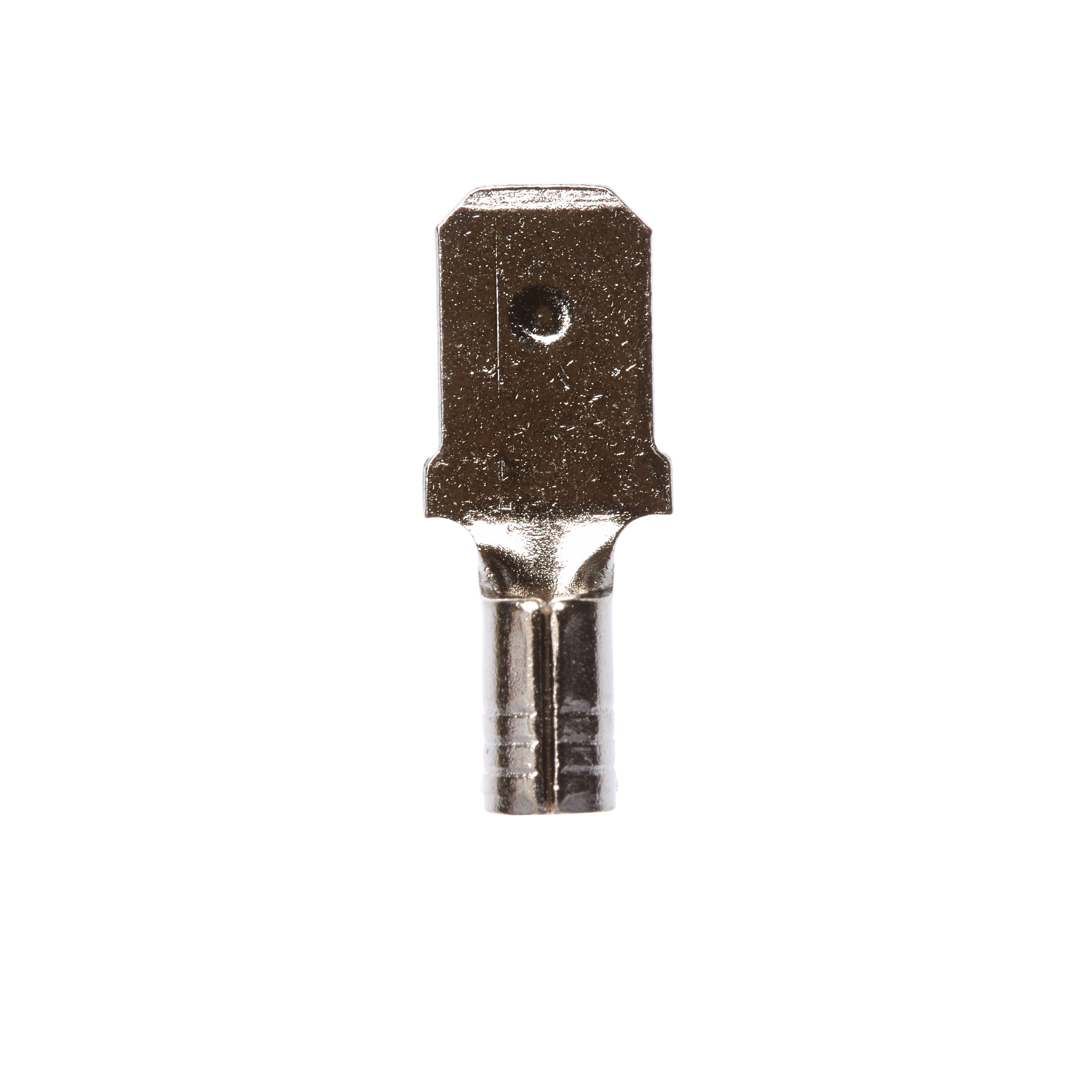

Specification	MU14-250DMHTX-BOTTLE

Contact Finish	Nickel
Contact Material	Steel
Features	Butted Seam
Gender	Male
Insulation	Non-Insulated
Length - Overall	0.73 in
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032 in
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge (AWG) (Max)	16 AWG
Wire Gauge (AWG) (Min)	14 AWG

MU14 Series

Part	Contact Finish	Contact Material	Features	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Terminal Type	Insulation	Termination	Length - Overall	Mounting Type	Tab Thickness	Tab Width	Gender	Thickness	Width - Outer Edges	Stud/Tab Size	Number of Wire Entries	Terminal Angle	Length - Termination	Length - Ring Center to Termination
3M Electronic Specialty MU14-187DFK	Tin	Brass	Butted Seam	16 AWG	14 AWG	Standard	Non-Insulated	Crimp	0.58 in	Free Hanging (In-Line)	0.02 in	0.187 in	Female
3M Electronic Specialty MU14-14RHTK	Nickel	Steel		16 AWG	14 AWG	Circular	Non-Insulated	Crimp	0.93 in	Free Hanging (In-Line)				0.03 in	0.56 in	0.25 Stud
3M Electronic Specialty MU14BCHTK				16 AWG	14 AWG	Butt Splice Individual Openings Inline	Non-Insulated	Crimp									2
3M Electronic Specialty MU14-187DF/FLAGX-BOTTLE	Tin	Brass	Butted Seam	16 AWG	14 AWG	Angled Flag	Non-Insulated	Crimp		Free Hanging (In-Line) Right Angle	0.02 in	0.187 in	Female					90 °
3M Electronic Specialty MU14-4R/SK	Tin	Copper ETP		16 AWG	14 AWG	Circular	Non-Insulated	Crimp	0.6 in	Free Hanging (In-Line)				0.03 in	0.25 in	4 Stud
3M Electronic Specialty MU14-8RLX-BOTTLE	Tin	Copper ETP		16 AWG	14 AWG	Circular	Non-Insulated	Crimp	0.74 in	Free Hanging (In-Line)				0.03 in	0.25 in	8 Stud
3M Electronic Specialty MU14-14RHTX-BOTTLE	Nickel	Steel		16 AWG	14 AWG	Circular	Non-Insulated	Crimp	0.93 in	Free Hanging (In-Line)				0.03 in	0.56 in	0.25 Stud
3M Electronic Specialty MU14-6R/SK	Tin	Copper ETP		16 AWG	14 AWG	Circular	Non-Insulated	Crimp	0.6 in	Free Hanging (In-Line)				0.03 in	0.25 in	6 Stud
3M Electronic Specialty MU14-4FLK	Tin	Copper ETP	Butted Seam	16 AWG	14 AWG	Snap Spring	Non-Insulated	Crimp	0.68 in	Free Hanging (In-Line)					0.25 in	4 Stud			0.25 in	0.25 in
3M Electronic Specialty MU14-250DF/FLAGX-BOTTLE	Tin	Brass	Butted Seam	16 AWG	14 AWG	Angled Flag	Non-Insulated	Crimp		Free Hanging (In-Line) Right Angle	0.032 in	0.25 in	Female					90 °
