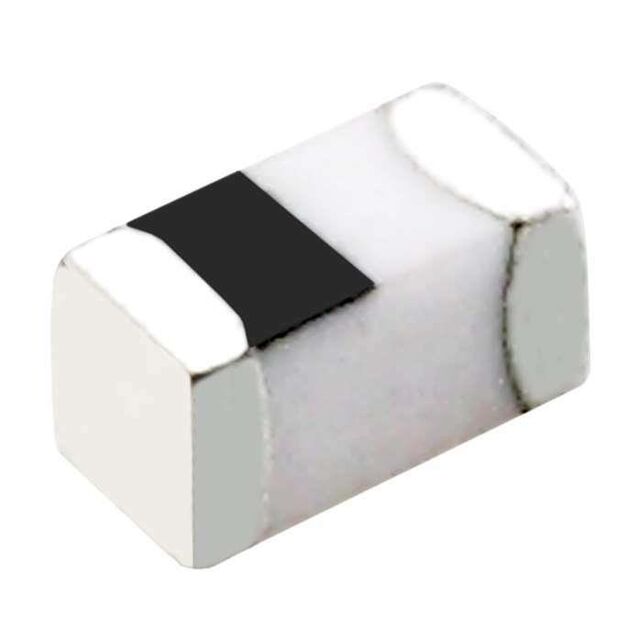

AIMC-Q0402-27NG-T
ActiveAbracon LLC
IND 27NH 0.3A 800MOHM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AIMC-Q0402-27NG-T
ActiveAbracon LLC
IND 27NH 0.3A 800MOHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AIMC-Q0402-27NG-T | AIMC-Q0402 Series |
|---|---|---|
| Current Rating (Amps) | 300 mA | 0.2 - 800 mA |
| DC Resistance (DCR) | - | 20 - 200 mOhm |
| DC Resistance (DCR) [Max] | 800 mOhm | 1.1 - 800 Ohm |
| Frequency - Self Resonant | 1.7 GHz | 1 - 10 GHz |
| Height - Seated (Max) [Max] [z] | 0.6 mm | 0.6 mm |
| Height - Seated (Max) [Max] [z] | 0.024 in | 0.024 in |
| Inductance | 27 nH | 1 - 56 nH |
| Inductance Frequency - Test | 100 MHz | 100 MHz |
| Material - Core | Ceramic | Ceramic |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Q @ Freq | 8 | 8 |
| Ratings | AEC-Q200 | AEC-Q200 |
| Shielding | Unshielded | Unshielded |
| Size / Dimension [x] | 1 mm | 1 mm |
| Size / Dimension [x] | 0.039 in | 0.039 in |
| Size / Dimension [y] | 0.6 mm | 0.6 mm |
| Size / Dimension [y] | 0.024 " | 0.024 " |
| Supplier Device Package | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Tolerance | 2 % | 0.1 - 5 nH |
| Type | Multilayer | Multilayer |
AIMC-Q0402 Series
IND 4.7NH 0.7A 20MOHM
| Part | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Current Rating (Amps) | Q @ Freq | Tolerance | Ratings | Shielding | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | DC Resistance (DCR) | Type | Inductance | Operating Temperature [Min] | Operating Temperature [Max] | Material - Core | Mounting Type | Frequency - Self Resonant | Inductance Frequency - Test | Supplier Device Package | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Abracon LLC AIMC-Q0402-4N7B-T | 0.6 mm | 0.024 in | 700 mA | 8 | 0.1 nH | AEC-Q200 | Unshielded | 0402 (1005 Metric) | 0.6 mm | 1 mm | 0.024 " | 0.039 in | 20 mOhm | Multilayer | 4.7 nH | -55 °C | 125 °C | Ceramic | Surface Mount | 6 GHz | 100 MHz | 0402 (1005 Metric) | |
Abracon LLC AIMC-Q0402-56NJ-T | 0.6 mm | 0.024 in | 0.2 A | 8 | 5 % | AEC-Q200 | Unshielded | 0402 (1005 Metric) | 0.6 mm | 1 mm | 0.024 " | 0.039 in | Multilayer | 56 nH | -55 °C | 125 °C | Ceramic | Surface Mount | 1 GHz | 100 MHz | 0402 (1005 Metric) | 1.1 Ohm | |
Abracon LLC AIMC-Q0402-27NG-T | 0.6 mm | 0.024 in | 300 mA | 8 | 2 % | AEC-Q200 | Unshielded | 0402 (1005 Metric) | 0.6 mm | 1 mm | 0.024 " | 0.039 in | Multilayer | 27 nH | -55 °C | 125 °C | Ceramic | Surface Mount | 1.7 GHz | 100 MHz | 0402 (1005 Metric) | 800 mOhm | |
Abracon LLC AIMC-Q0402-1N0S-T | 0.6 mm | 0.024 in | 1 A | 8 | 0.3 nH | AEC-Q200 | Unshielded | 0402 (1005 Metric) | 0.6 mm | 1 mm | 0.024 " | 0.039 in | Multilayer | 1 nH | -55 °C | 125 °C | Ceramic | Surface Mount | 10 GHz | 100 MHz | 0402 (1005 Metric) | 80 mOhm | |
Abracon LLC AIMC-Q0402-3N0B-T | 0.6 mm | 0.024 in | 800 mA | 8 | 0.1 nH | AEC-Q200 | Unshielded | 0402 (1005 Metric) | 0.6 mm | 1 mm | 0.024 " | 0.039 in | Multilayer | 3 nH | -55 °C | 125 °C | Ceramic | Surface Mount | 6 GHz | 100 MHz | 0402 (1005 Metric) | 160 mOhm | |
Abracon LLC AIMC-Q0402-3N6B-T | 0.6 mm | 0.024 in | 700 mA | 8 | 0.1 nH | AEC-Q200 | Unshielded | 0402 (1005 Metric) | 0.6 mm | 1 mm | 0.024 " | 0.039 in | 200 mOhm | Multilayer | 3.6 nH | -55 °C | 125 °C | Ceramic | Surface Mount | 6 GHz | 100 MHz | 0402 (1005 Metric) | |
Abracon LLC AIMC-Q0402-15NH-T | 0.6 mm | 0.024 in | 400 mA | 8 | 3 % | AEC-Q200 | Unshielded | 0402 (1005 Metric) | 0.6 mm | 1 mm | 0.024 " | 0.039 in | Multilayer | 15 nH | -55 °C | 125 °C | Ceramic | Surface Mount | 2.5 GHz | 100 MHz | 0402 (1005 Metric) | 550 mOhm | |
Abracon LLC AIMC-Q0402-5N1S-T | 0.6 mm | 0.024 in | 600 mA | 8 | 0.3 nH | AEC-Q200 | Unshielded | 0402 (1005 Metric) | 0.6 mm | 1 mm | 0.024 " | 0.039 in | Multilayer | 5.1 nH | -55 °C | 125 °C | Ceramic | Surface Mount | 5.3 GHz | 100 MHz | 0402 (1005 Metric) | 230 mOhm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.08 | |||
| 100 | $ 0.07 | |||
| 1000 | $ 0.06 | |||
| 5000 | $ 0.06 | |||
| Digi-Reel® | 1 | $ 0.10 | ||
| 10 | $ 0.08 | |||
| 100 | $ 0.07 | |||
| 1000 | $ 0.06 | |||
| 5000 | $ 0.06 | |||
| Tape & Reel (TR) | 10000 | $ 0.04 | ||
| 20000 | $ 0.04 | |||
| 30000 | $ 0.04 | |||
| 50000 | $ 0.04 | |||
Description
General part information
AIMC-Q0402 Series
27 nH Unshielded Multilayer Inductor 300 mA 800mOhm Max 0402 (1005 Metric)
