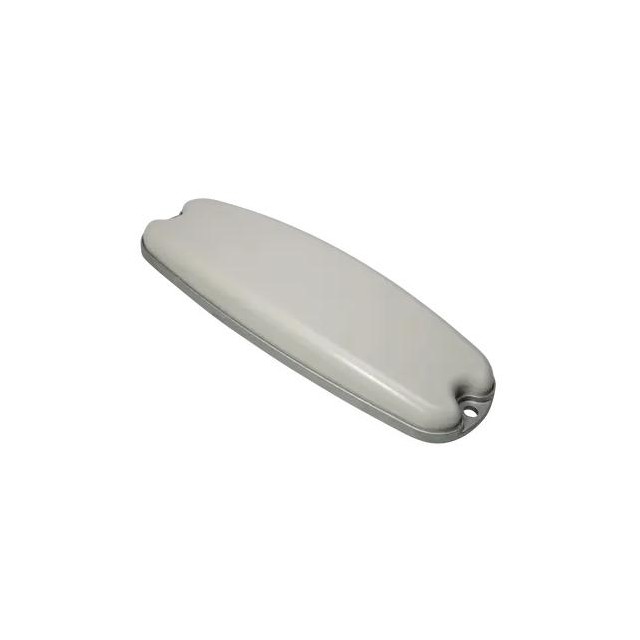

1399.35.0004
ActiveHuber+Suhner, Inc.
1399.35.0004
1399.35.0004
ActiveHuber+Suhner, Inc.
1399.35.0004
Description
General part information
1399.35.0004
1399.35.0004
Technical Specifications
Parameters and characteristics for this part
| Specification | 1399.35.0004 |
|---|---|
| Antenna Type | Module |
| Applications | WLAN, 802.11b/g/a/h/p/n/ac, Wi-Fi, LTE |
| Frequency (Band) | 5.542 GHz |
| Frequency (Center) | 2.545 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 2.69 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 5.935 GHz |
| Frequency Range (Band 2) Minimum | 5.15 GHz |
| Gain | 6 dBi, 4 dBi |
| Height (Max) | 1.26 in |
| Ingress Protection | IP65 |
| Mounting Type | Chassis Mount |
| Number of Bands | 2 |
| RF Family/Standard | WiFi, Cellular |
| Termination Count | 3 |
| Termination Type | QMA Female |
| VSWR | 1.7 |
