108477096001026
ActiveKYOCERA AVX
CONN DIN HDR 96POS PCB GOLD
108477096001026
ActiveKYOCERA AVX
CONN DIN HDR 96POS PCB GOLD
Description
General part information
108477096001026

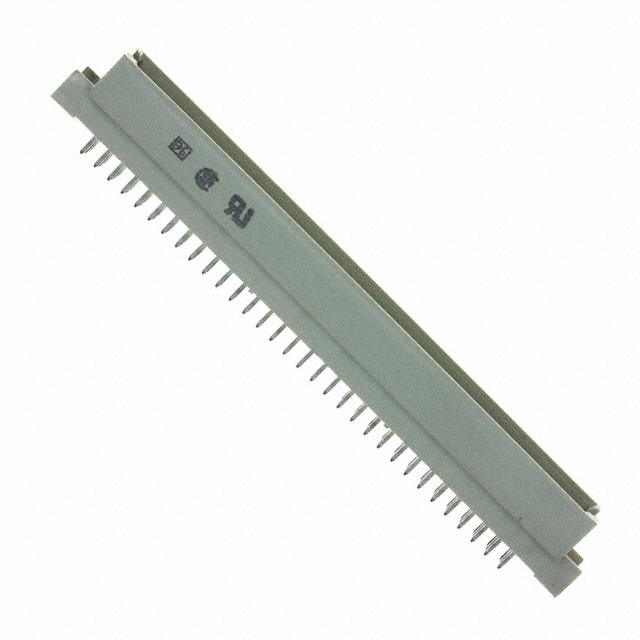

96 Position Din Connector Header, Male Pins Gold Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 108477096001026 |
|---|---|
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Current Rating | 3 A |
| Level, Class | 2 |
| Material - Insulation | Glass Filled, Polyester Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 96 |
| Number of Positions Loaded | 64 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Pitch | 0.1 in |
| Style | R |
| Termination | Solder |
