AS13986-1833-T

Obsolete

ams-OSRAM USA INC.

IC REG LINEAR 1.8V/3.3V 8WLP

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

IC REG LINEAR 1.8V/3.3V 8WLP

Technical Specifications

Parameters and characteristics for this part

Specification	AS13986-1833-T

Control Features	Enable
Current - Output	150 mA
Current - Quiescent (Iq)	200 µA
Current - Supply (Max) [Max]	370 µA
Mounting Type	Surface Mount
Number of Regulators	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	WLCSP, 8-UFBGA
Protection Features	Over Current, Over Temperature
PSRR [Max]	55 dB
PSRR [Min]	50 dB

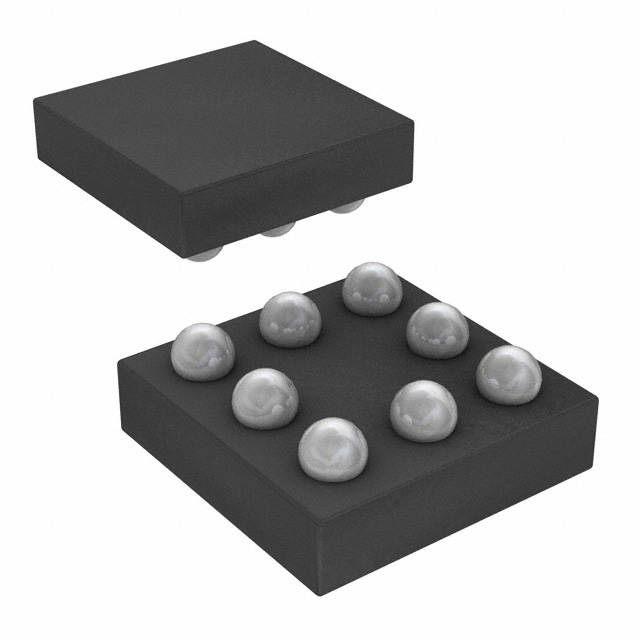

Supplier Device Package	8-WLP (1.55x1.55)
Voltage - Input (Max) [Max]	5.5 V
Voltage - Output (Min/Fixed)	1.8 V, 3.3 V
Voltage Dropout (Max)	-
Voltage Dropout (Max) [Max]	0.1 V

Part	Current - Quiescent (Iq)	Output Type	PSRR [Max]	PSRR [Min]	Current - Supply (Max) [Max]	Protection Features	Mounting Type	Number of Regulators	Current - Output	Output Configuration	Voltage - Input (Max) [Max]	Package / Case	Voltage - Output (Min/Fixed)	Control Features	Voltage Dropout (Max)	Voltage Dropout (Max) [Max]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]
ams-OSRAM USA INC. AS13986-1833-T	200 µA	1.81 mOhm	55 dB	50 dB	370 µA	Over Current Over Temperature	Surface Mount	2	150 mA	Positive	5.5 V	8-UFBGA WLCSP	1.8 V 3.3 V	Enable	-	0.1 V	8-WLP (1.55x1.55)	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 2 Output 150mA, 150mA 8-WLP (1.55x1.55)

Technical documentation and resources
