FWA-600A
ActiveEaton - Electronics Division
FUSE CARTRIDGE 600A 150VAC/VDC
FWA-600A
ActiveEaton - Electronics Division
FUSE CARTRIDGE 600A 150VAC/VDC
Description
General part information
FWA-600A

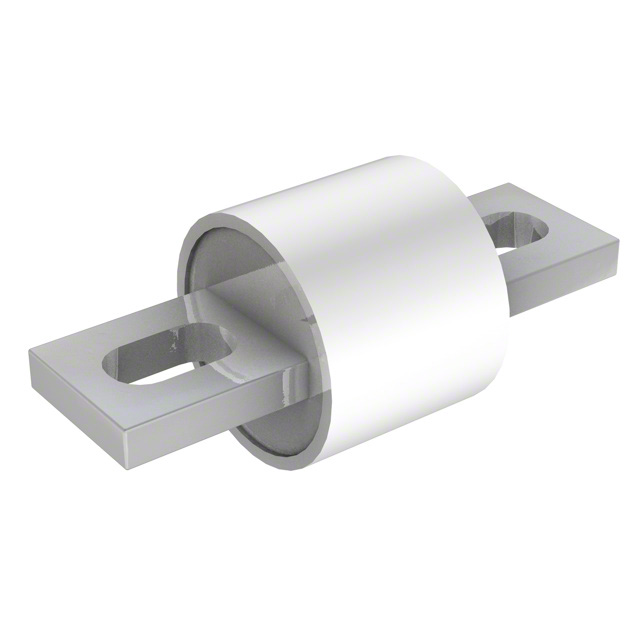

600A 150 VAC 150 VDC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FWA-600A |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | UR, CE |
| Breaking Capacity (AC) | 200 kA |
| Breaking Capacity (DC) | 20 kA |
| Current Rating | 600 A |
| Fuse Type | Cartridge |
| Melting I²t | 46000 |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Size / Dimension Diameter | 1.5 in |
| Size / Dimension Length | 1.25 in |
| Voltage Rating - AC | 150 V |
| Voltage Rating - DC | 150 VDC |
