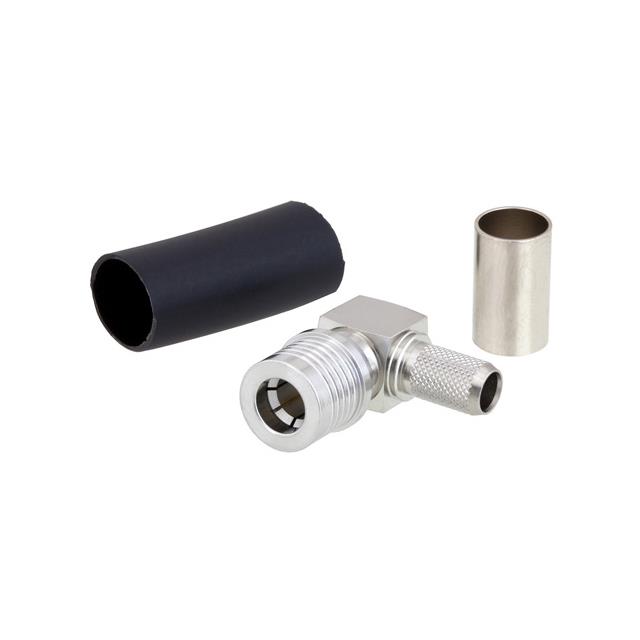

EZ-240-QM-RA-X-LC
ActivePasternack
QMA MALE RIGHT ANGLE CONNECTOR C
EZ-240-QM-RA-X-LC
ActivePasternack
QMA MALE RIGHT ANGLE CONNECTOR C
Description
General part information
EZ-240-QM-RA-X-LC
QMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | EZ-240-QM-RA-X-LC |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Cable Group | LMR-240 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | QMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Insertion Loss | 0.25 dB |
| Mating Cycles | 100 cycles |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
