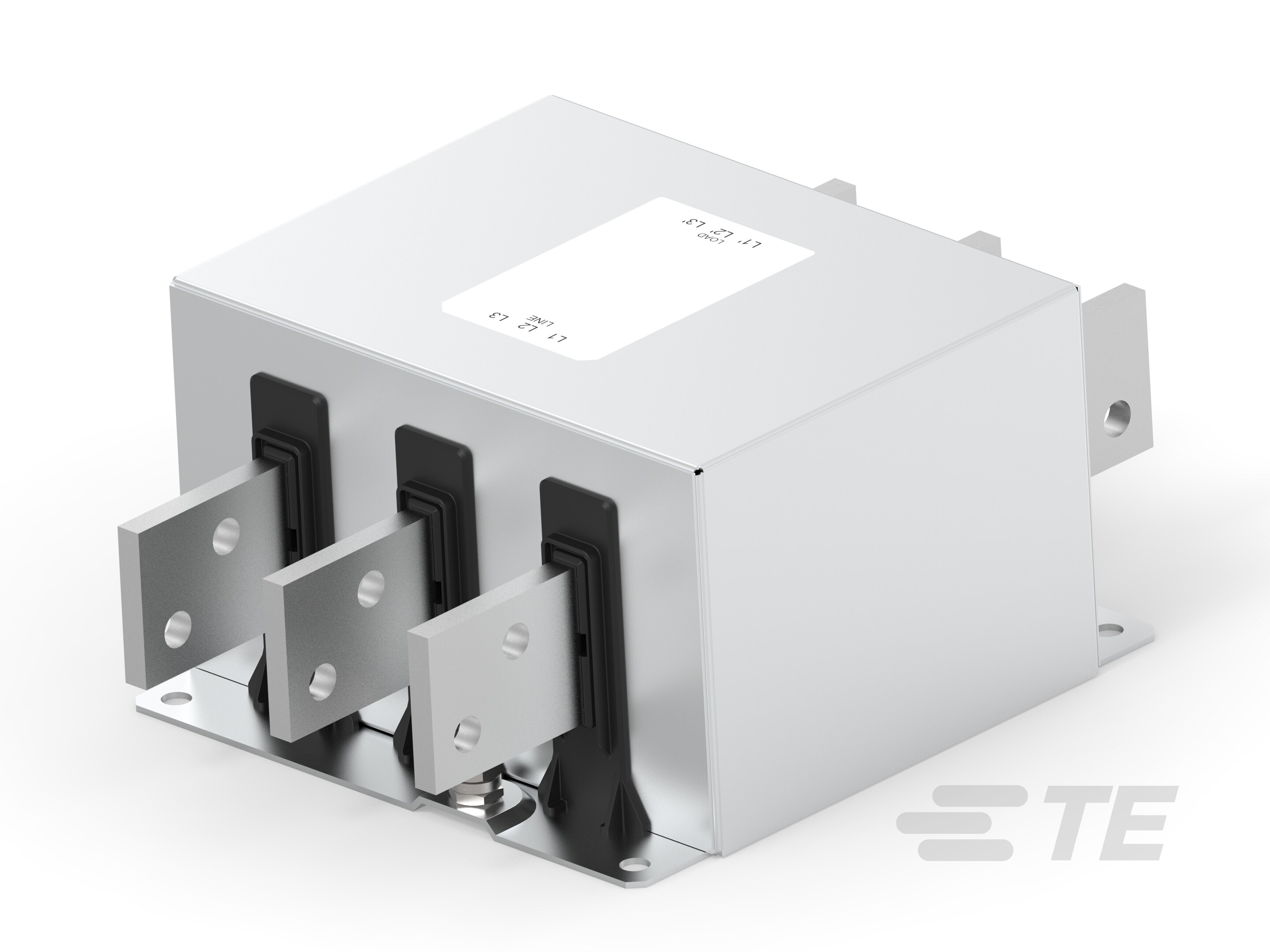

Specification	FN3311-1500-99-C16-R55

Applications	General Purpose
Approval Agency	ENEC, cURus, CE
Configuration	Single Stage
Current	1500 A
Filter Subtype	Delta
Filter Type	Three Phase
Frequency - Operating	60 Hz
Mounting Type	Chassis Mount
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Termination Style	Terminal Post
Voltage - Rated AC	520V, 300V
Voltage - Rated AC (Phase to Ground/Neutral)	300 V
Voltage - Rated AC (Phase to Phase)	520 V

Schaffner FN3311 Series

Part	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Filter Subtype	Filter Type	Configuration	Termination Style	Approval Agency	Voltage - Rated AC (Phase to Ground/Neutral)	Applications	Frequency - Operating (Max)	Frequency - Operating (Min)	Voltage - Rated AC (Phase to Phase)	Current	Voltage - Rated AC	Voltage - Rated AC	Frequency - Operating
TE Connectivity AMP Connectors FN3311IT-1500-99-C18-R5	Chassis Mount	100 °C	-40 °C	Delta	Three Phase	Single Stage	Terminal Post	CE cURus ENEC UKCA	300 V	General Purpose	60 Hz	0 Hz	520 V	1500 A
TE Connectivity AMP Connectors FN3311HVIT-400-99-C21-R5	Chassis Mount	100 °C	-40 °C	Delta	Three Phase	Single Stage	Terminal Post	CE cURus ENEC UKCA	300 V	Photovoltaic Inverter	60 Hz	0 Hz	520 V	400 A	520 V
TE Connectivity AMP Connectors FN3311-400-99-C16-R55	Chassis Mount	100 °C	-40 °C	Delta	Three Phase	Single Stage	Terminal Post	CE cURus ENEC	300 V	General Purpose			520 V	400 A		300V 520V	60 Hz
TE Connectivity AMP Connectors FN3311HVIT-1500-99-C21-R5	Chassis Mount	100 °C	-40 °C	Delta	Three Phase	Single Stage	Terminal Post	CE cURus ENEC UKCA	440 V	Inverters Power Drive Systems	60 Hz	0 Hz	760 V	1500 A
TE Connectivity AMP Connectors FN3311-2300-99-C28-R55	Chassis Mount	100 °C	-40 °C	Delta	Three Phase	Single Stage	Terminal Post	CE cURus ENEC UKCA	300 V	General Purpose	60 Hz	0 Hz	520 V	2.3 kA
TE Connectivity AMP Connectors FN3311-1500-99-C28-R55	Chassis Mount	100 °C	-40 °C	Delta	Three Phase	Single Stage	Terminal Post	CE cURus ENEC UKCA	300 V	General Purpose	60 Hz	0 Hz	520 V	1500 A
TE Connectivity AMP Connectors FN3311-600-99-C28-R55	Chassis Mount	100 °C	-40 °C	Delta	Three Phase	Single Stage	Terminal Post	CE cURus ENEC UKCA	300 V	General Purpose	60 Hz	0 Hz	520 V	600 A
TE Connectivity AMP Connectors FN3311-400-99-C28-R55	Chassis Mount	100 °C	-40 °C	Delta	Three Phase	Single Stage	Terminal Post	CE cURus ENEC UKCA	300 V	General Purpose	60 Hz	0 Hz	520 V	400 A
TE Connectivity AMP Connectors FN3311HVIT-600-99-C18-R5	Chassis Mount	100 °C	-40 °C	Delta	Three Phase	Single Stage	Terminal Post	CE cURus ENEC UKCA	440 V	Inverters Power Drive Systems	60 Hz	0 Hz	760 V	600 A
TE Connectivity AMP Connectors FN3311IT-250-99-C18-R5	Chassis Mount	100 °C	-40 °C	Delta	Three Phase	Single Stage	Terminal Post	CE cURus ENEC UKCA	300 V	General Purpose	60 Hz	0 Hz	520 V	250 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

UKCA_FN-3ph-60939-3

CE_FN-3ph-60939-3

3-Phase Filters FN3311 and FN3310

Datasheet

FN3311-1500-99-C16-R55 | Datasheet
