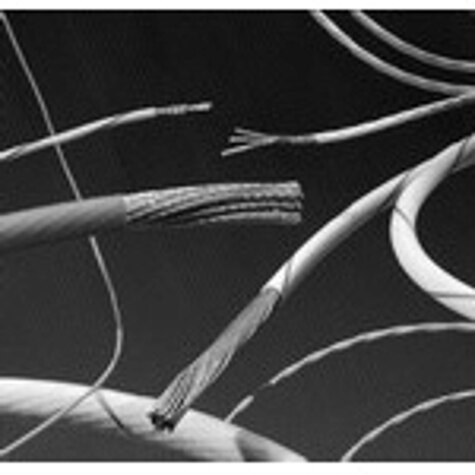

82A1111-22-9-9
ActiveTE Connectivity AMP Connectors
CBL 1COND STRND 22AWG 600V WHITE
82A1111-22-9-9
ActiveTE Connectivity AMP Connectors
CBL 1COND STRND 22AWG 600V WHITE
Description
General part information
82A1111-22-9-9
CBL 1COND STRND 22AWG 600V WHITE
Technical Specifications
Parameters and characteristics for this part
| Specification | 82A1111-22-9-9 |
|---|---|
| Cable Type | Shielded, Hook-Up |
| Conductor Material | Tinned, Copper |
| Conductor Strand Count | 154 |
| Conductor Strand Gauge | 44 |
| Jacket (Insulation) Diameter | 0.074 in |
| Jacket (Insulation) Material | Ethylene Tetrafluoroethylene (ETFE), Irradiated |
| Jacket (Insulation) Thickness | 0.007 in |
| Jacket Color | White |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -65 °C |
| Qualification | MIL-W-22759 |
| Voltage | 600 V |
| Wire Gauge | 22 AWG |
