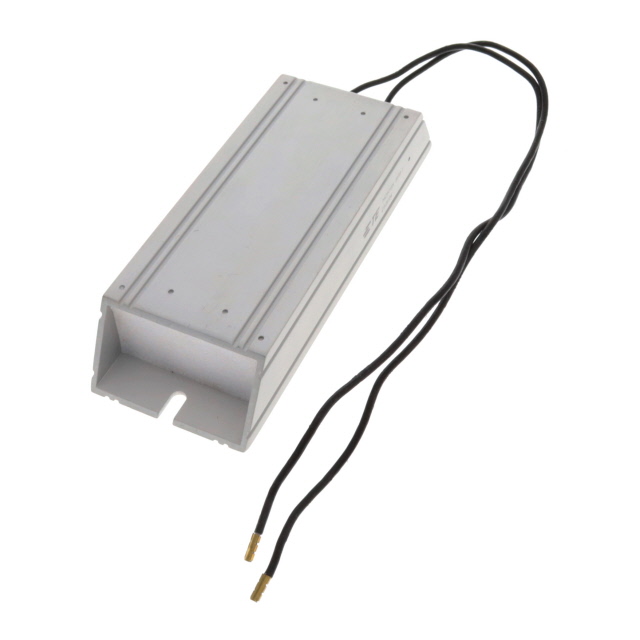

HCH165J6R8J

HCH165J6R8J

Active
TE Connectivity AMP Connectors

WIREWOUND RESISTORS - CHASSIS MOUNT HCH165 200W 6R8 5% LEAD

Find alt
HCH165J6R8J

HCH165J6R8J

Active
TE Connectivity AMP Connectors

WIREWOUND RESISTORS - CHASSIS MOUNT HCH165 200W 6R8 5% LEAD

Find alt

Description

General part information

CGS HCH Series

6.8 ohm Chassis Mount Resistor, 200 W, Wire Wound, 2 Terminations, ±200 ppm/°C, .05 %, Flying Leads, Loose Piece - Box, CGS HCH

Technical Specifications

Parameters and characteristics for this part

SpecificationHCH165J6R8J
CoatingAluminum
CompositionWirewound
FeaturesPulse Withstanding, IP54
Height - Seated (Max)1.26 in
Housing TypeAluminum
Lead StyleWire Leads
Mounting FeatureFlanges
Operating Temperature320 °C
Package / CaseRectangular Case
Power (Watts)200 W
Resistance6.8 Ohm
Size / Dimension Length6.496 in
Size / Dimension Width2.362 in
Temperature Coefficient200 ppm/°C
Tolerance5 %
