091216140
ActiveRose Enclosures
BOX ABS GRAY 6.3"L X 4.72"W
091216140
ActiveRose Enclosures
BOX ABS GRAY 6.3"L X 4.72"W
Description
General part information
091216140

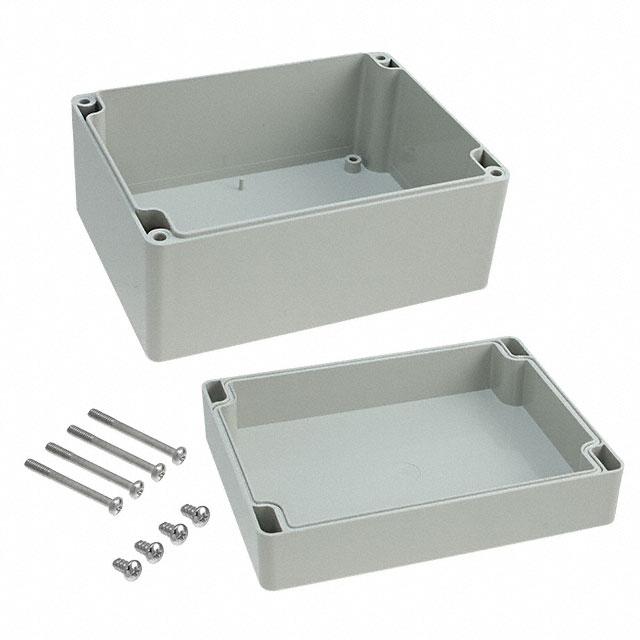

Box Plastic, ABS Gray Cover Included 6.299" L x 4.724" W (160.00mm x 120.00mm) X 5.512" (140.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 091216140 |
|---|---|
| Area (L x W) | 29.8 in² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Features | Watertight |
| Height | 5.512 in |
| Material | ABS, Plastic |
| Material Flammability Rating | UL94 HB |
| Ratings | NEMA 4X, IP66 |
| Size / Dimension Length | 6.299 in |
| Size / Dimension Width | 4.724 in |
| Thickness | 0.118 in |
| Weight | 1.3 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
