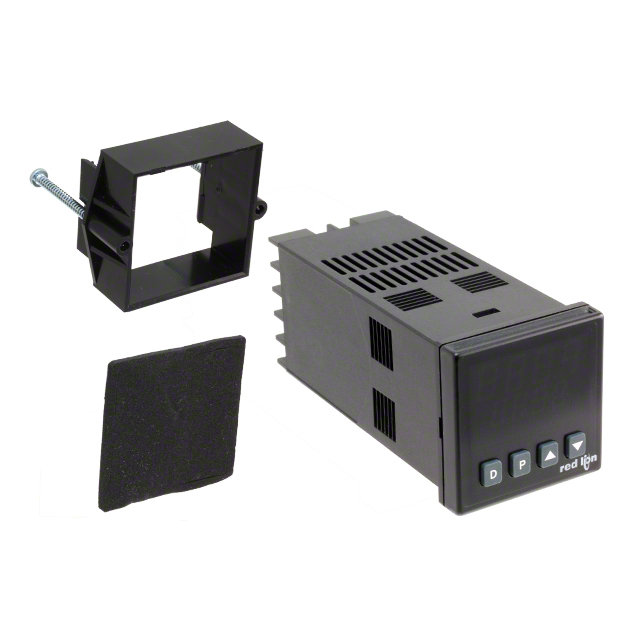

Specification	T4821113

Control Method	Off, Proportional (PID), On
Display Characters - Height	0.401 in
Display Characters - Height (Option 2)	0.299 in
Display Type	LED - Dual Color Characters
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Input Temperature (Max) (Range 1)	1820 °C
Input Temperature (Min) (Range 1)	-200 °C
Input Voltage (Max) (Range 1)	56 mV
Input Voltage (Min) (Range 1)	-5 mV
Maximum Number of Characters Per Row	4 characters
Minimum Number of Characters Per Row	4 characters
Mounting Type	Panel Mount
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	0 °C
Output Type	Relay, Voltage (External SSR)
Panel Cutout Length	45 mm
Panel Cutout Shape	Square
Panel Cutout Width	45 mm
Relay (Count)	2
Termination Style	Screw Terminal
Type	E, T), S, J, R, Temperature Controller (RTD, Type B, N, K
Voltage - Supply	24 VDC
Voltage - Supply (Maximum)	36 VDC
Voltage - Supply (Minimum)	18 VAC
Voltage - Supply (Option 1)	24 VAC
Voltage - Supply (Range 1 Maximum)	24 VDC
Voltage - Supply (Range 1 Minimum)	24 VAC
Voltage - Supply (Range 2 Maximum)	36 V
Voltage - Supply (Range 2 Minimum)	18 VDC
Voltage - Supply Maximum	36 VDC
Voltage - Supply Minimum	18 VDC
Weight	0.38 lb
