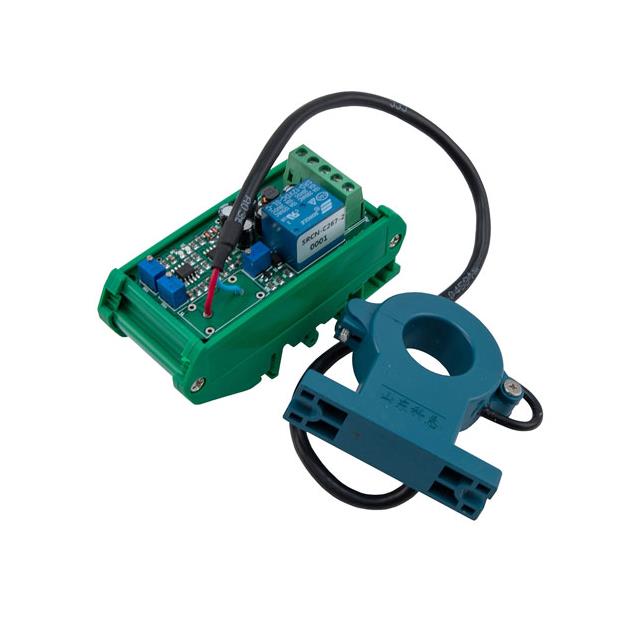

SRCN-C267-2
ActivePasternack
AC CURRENT SENSOR WITH SWITCH OU
SRCN-C267-2
ActivePasternack
AC CURRENT SENSOR WITH SWITCH OU
Description
General part information
SRCN-C267-2
Current Sensing DC 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | SRCN-C267-2 |
|---|---|
| Circuit | DPST-NO/NC (1 Form A and B) |
| Delay Time (Options) | No Delay |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Output Type | Relay |
| Trip Current (Max) | 100 A |
| Trip Current (Min) | 0 A |
| Trip Status | Low, Energized High |
| Type | Current Sensing AC, Current Sensing DC |
| Voltage - Supply | 24 VDC |
