SL8803/04-10DN5-00

Active

CBL RIBN 4COND SILVER 0.750'

Search across all available documentation for this part.

Active

CBL RIBN 4COND SILVER 0.750'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SL8803/04-10DN5-00	SL8803 Series

Cable Type	Flat Twin Axial	Flat Twin Axial
Conductor Material	Copper, Silver Coated	Copper, Silver Coated
Conductor Strand	Solid	Solid
Features	Down, Straight, Reversed, Opposite	Down, Straight, Reversed, Opposite
Insulation Resistance	1 GOhms	1 GOhms
Jacket (Insulation) Material	Polyolefin (PO)	Polyolefin (PO)
Jacket Color	Silver	Silver
Length	152.4 mm, 254 mm, 15.24 m, 152.4 m, 177.7 mm, 228.6 mm, 304.8 m, 304.8 mm, 203.2 mm	15.24 - 304.8 m
Length	6 ", 10 in, 7 in, 9 in, 8 in	6 - 10 "
Length	0.5 '	0.5 '
Length	0.833 ft, 50 ft, 6000 in, 0.583 ft, 0.75 ft, 1000 ft, 1 ft, 0.667 ft	0.583 - 6000 in
Length [x]	0.917 ft, 10 ft, 1.17 ft, 100 ft, 1.33 ft	0.917 - 100 ft
Length [x]	11 "	11 "
Length [x]	279.4 mm, 3.05 m, 355.62 mm, 30.48 m, 406.4 mm	3.05 - 406.4 mm
Number of Conductors	4	4 - 8
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Ratings	UL E42769	UL E42769
Ribbon Thickness	0.89 mm	0.89 mm
Ribbon Thickness	0.035 in	0.035 in
Ribbon Width	7.8 mm	7.8 mm
Ribbon Width	-	15.6 mm
Ribbon Width	-	0.614 in
Ribbon Width [custom]	0.307 "	0.307 "
Shielding	Shielded	Shielded
Voltage	150 V	150 V
Wire Gauge	30 AWG	30 AWG

CBL RIBN 8COND SILVER 500'

Part	Shielding	Ribbon Thickness	Ribbon Thickness	Length	Length	Ribbon Width [y]	Ribbon Width [y]	Jacket Color	Conductor Strand	Number of Conductors	Insulation Resistance	Jacket (Insulation) Material	Conductor Material	Wire Gauge	Cable Type	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Length [x]	Length [x]	Length [x]	Ribbon Width [custom]	Ribbon Width	Features	Ratings
3M SL8803/08-11DN5-00-500'	Shielded	0.89 mm	0.035 in	152.4 m	6000 in	15.6 mm	0.614 in	Silver	Solid	8	1 GOhms	Polyolefin (PO)	Copper, Silver Coated	30 AWG	Flat Twin Axial	150 V	-20 C	80 C
3M SL8803/08-10DN5-00-500'	Shielded	0.89 mm	0.035 in	152.4 m	6000 in	15.6 mm	0.614 in	Silver	Solid	8	1 GOhms	Polyolefin (PO)	Copper, Silver Coated	30 AWG	Flat Twin Axial	150 V	-20 C	80 C
3M SL8803/04-10DN5-00	Shielded	0.89 mm	0.035 in	15.24 m, 152.4 mm, 152.4 m, 177.7 mm, 203.2 mm, 228.6 mm, 254 mm, 304.8 m, 304.8 mm	0.583 ft, 0.667 ft, 0.75 ft, 0.833 ft, 1 ft, 50 ft, 1000 ft, 6000 in			Silver	Solid	4	1 GOhms	Polyolefin (PO)	Copper, Silver Coated	30 AWG	Flat Twin Axial	150 V	-20 C	80 C	6 ", 7 in, 8 in, 9 in, 10 in	0.5 '	0.917 ft, 1.17 ft, 1.33 ft, 10 ft, 100 ft	11 "	3.05 m, 30.48 m, 279.4 mm, 355.62 mm, 406.4 mm	0.307 "	7.8 mm	Down, Opposite, Reversed, Straight	UL E42769

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

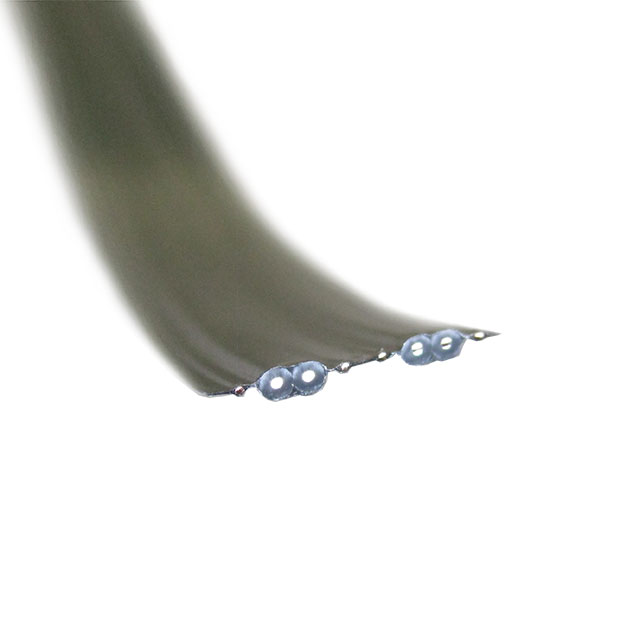

Flat Ribbon Cable Silver 4 (2 Pair) Conductors Flat Twin Axial 0.750' (228.60mm, 9.00")
