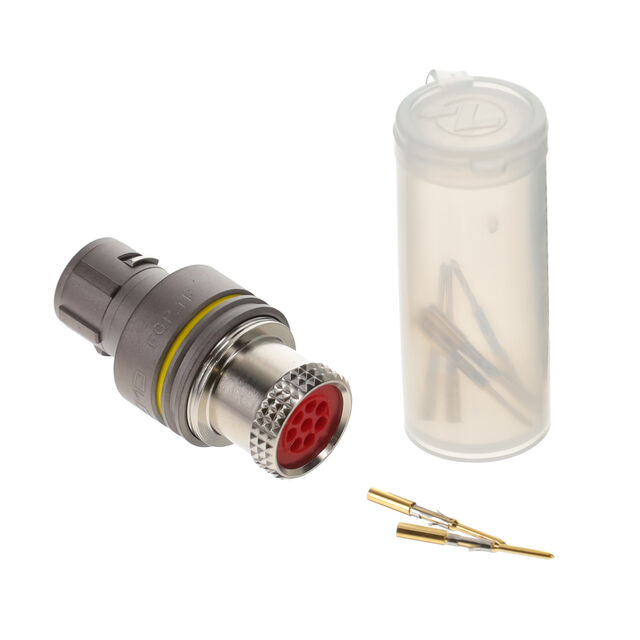

FGP.1F.308.XLC

Active

LEMO

CONN PLUG MALE 8POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG MALE 8POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FGP.1F.308.XLC	FGP.1F Series

Applications	Aerospace	Aerospace
Cable Opening [custom]	0.421 in	0.421 in
Cable Opening [custom]	10.7 mm	10.7 mm
Color	Gray	Silver, Gray
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	8	8
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-15 °C	-55 - -15 °C
Orientation	P	P
Primary Material	Metal	Metal
Shell Finish	Nickel	Chrome, Nickel
Shell Material	Aluminum Alloy	Brass, Aluminum Alloy
Shell Size - Insert	308	308
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

Circular Push Pull Connectors STRAIGHT PLUG MALE W. KEY

Part	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Contact Material	Termination	Applications	Fastening Type	Ingress Protection	Color	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Shell Material	Number of Positions	Insert Material	Cable Opening [custom]	Cable Opening [custom]	Shell Finish	Shielding	Primary Material	Orientation
LEMO FGP.1F.308.CLC	5 A	UL94 V-0	-55 °C	200 °C	Male Pins, Plug	Free Hanging (In-Line)	Brass	Crimp	Aerospace	Push-Pull	IP67 - Dust Tight, Waterproof	Silver	Gold	1 µm	39.4 µin	308	Brass	8	Polyetheretherketone (PEEK)	0.421 in	10.7 mm	Chrome	Shielded	Metal	P
LEMO FGP.1F.308.YLC	5 A	UL94 V-0	-15 °C	200 °C	Male Pins, Plug	Free Hanging (In-Line)	Brass	Crimp	Aerospace	Push-Pull	IP67 - Dust Tight, Waterproof	Gray	Gold	1 µm	39.4 µin	308	Aluminum Alloy	8	Polyetheretherketone (PEEK)	0.421 in	10.7 mm	Nickel	Shielded	Metal	P
LEMO FGP.1F.308.XLC	5 A	UL94 V-0	-15 °C	200 °C	Male Pins, Plug	Free Hanging (In-Line)	Brass	Crimp	Aerospace	Push-Pull	IP67 - Dust Tight, Waterproof	Gray	Gold	1 µm	39.4 µin	308	Aluminum Alloy	8	Polyetheretherketone (PEEK)	0.421 in	10.7 mm	Nickel	Shielded	Metal	P

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Push Pull Connectors STRAIGHT PLUG MALE W. KEY
