CC-WMX-JM8E-NN

Active

Digi

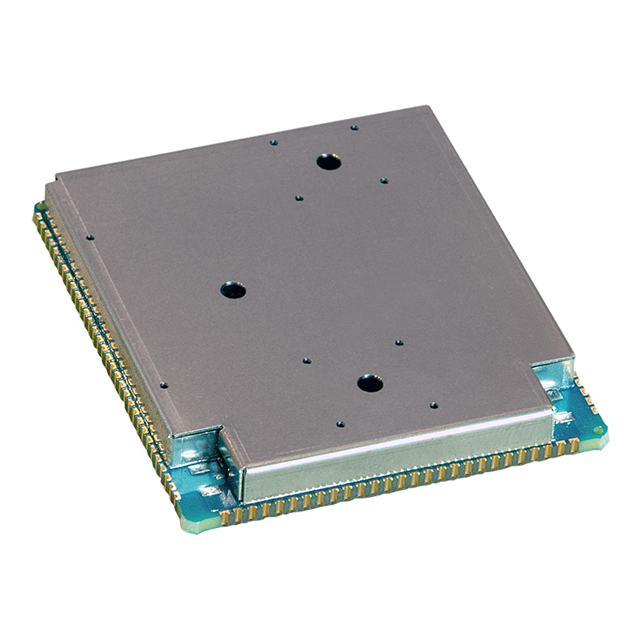

RF TXRX MOD BLUETOOTH WIFISMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDigi ConnectCore® Product Comparison Block Diagram ConnectCore 8 +1

CC-WMX-JM8E-NN

Active

Digi

RF TXRX MOD BLUETOOTH WIFISMD

Deep-Dive with AI

DocumentsDigi ConnectCore® Product Comparison Block Diagram ConnectCore 8 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CC-WMX-JM8E-NN	CC-WMX Series

	-	-
Antenna Type	Antenna Not Included	Antenna Not Included, U.FL, Antenna Not Included
Connector Type	-	Board-to-Board (BTB) Socket - 360
Contents	-	Power Supply, Cable(s), Accessories, Board(s)
Core Processor	-	i.MX53, ARM® Cortex®-A8
Current - Receiving	-	100 - 700 mA
Current - Transmitting	-	406 - 700 mA
Data Rate	200 Mbps	65 - 200 Mbps
For Use With/Related Products	-	i.MX 8M Nano, i.MX53, i.MX28, i.MX 8M Mini
Frequency	-	1 - 800 GHz
Frequency [Max]	5.85 GHz, 2.484 GHz	2.48 - 5.85 GHz
Frequency [Min]	4.9 GHz, 2.412 GHz	2.4 - 4.9 GHz
Memory Size	16 GB, 2 GB	1 - 512 MB
Memory Size	-	4 - 512 MB
Memory Size	-	256 - 512 MB
Memory Size	-	1 GB
Modulation	-	QPSK, DQPSK, CCK, DBPSK, 64QAM, BPSK, 16QAM
Module/Board Type	-	MPU Core
Mounting Type	Surface Mount	Card Edge, Chassis Mount, Surface Mount
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - -20 C
Package / Case	Module	Module, 100-SMD Module
Power - Output	17 dBm	2 - 19 dBm
Protocol	Bluetooth v5.0, 802.11a/b/g/n	802.11a/b/g/n, Bluetooth v4.0, 802.11a/b/g/n/ac, Bluetooth v5.0
RF Family/Standard	WiFi, Bluetooth	WiFi, Bluetooth
Sensitivity	-	-94 dBm
Serial Interfaces	ADC, JTAG, SDIO, PCIe, USB, I2C, I2S, GPIO, SPI, UART	UART, SPI, USB, I2C, I2S, JTAG, PWM, SDIO, Ethernet, GPIO, ADC, PCIe
Size / Dimension	-	82 mm
Size / Dimension	-	1.97 "
Size / Dimension	-	50 mm
Size / Dimension	-	3.23 "
Speed	-	800 MHz
Supplied Contents	-	Board(s), Power Supply, Cable(s), Accessories
Type	-	802.11 a/b/g/n/ac (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver, 802.11 a/b/g/n (Wi-Fi, WiFi, WLAN)
Utilized IC / Part	-	i.MX28, MKL14Z32VFT4
Voltage - Supply	-	3.4 V
Voltage - Supply	-	4.8 V
Voltage - Supply	-	3.3 - 3.75 V

CC-WMX Series

RF TXRX MODULE WIFI U.FL

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Protocol	Package / Case	Antenna Type	Power - Output	Sensitivity	Data Rate	Frequency	Memory Size [custom]	Memory Size [custom]	Serial Interfaces	RF Family/Standard	For Use With/Related Products	Supplied Contents	Type	Modulation	Current - Receiving	Current - Transmitting	Mounting Type	Memory Size	Voltage - Supply
Digi CC-WMX-LB69-VM-B	3.4 V	4.8 V	-20 C	70 °C	802.11a/b/g/n	Module	Antenna Not Included, U.FL	19 dBm	-94 dBm	65 Mbps	2.4 GHz, 5 GHz	512 MB	512 MB	I2C, SPI, UART, USB	WiFi
Digi CC-WMX8MN-KIT											2.4 GHz, 5 GHz					i.MX 8M Nano	Board(s)	802.11 a/b/g/n/ac (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver
Digi CC-WMX53-LX											2.4 GHz, 5 GHz					i.MX53	Accessories, Board(s), Cable(s), Power Supply	802.11 a/b/g/n (Wi-Fi, WiFi, WLAN), Transceiver
Digi CC-WMX-PF58-QK			-40 °C	85 °C	802.11a/b/g/n, Bluetooth v4.0	Module	Antenna Not Included, U.FL	17 dBm		150 Mbps	2.4 GHz, 5 GHz	256 MB	256 MB	I2C, I2S, JTAG, PWM, SPI, UART, USB	Bluetooth, WiFi				16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, QPSK	100 mA	406 mA	Card Edge
Digi CC-WMX-MB47-VM	3.4 V	4.8 V	-40 °C	85 °C	802.11a/b/g/n	Module	Antenna Not Included, U.FL	19 dBm	-94 dBm	65 Mbps	2.4 GHz, 5 GHz			I2C, SPI, UART, USB	WiFi								128 MB, 128 MB
Digi CC-WMX-KD69-VM-B			-40 °C	85 °C	802.11a/b/g/n	Module	Antenna Not Included, U.FL	17 dBm	-94 dBm	65 Mbps	2.4 GHz, 5 GHz	512 MB	512 MB	Ethernet, I2C, I2S, JTAG, SDIO, SPI, UART, USB	WiFi				16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, QPSK	700 mA	700 mA	Chassis Mount		3.75 V
Digi CC-WMX6UL-START											2.4 GHz, 5 GHz						Board(s), Cable(s)	802.11 a/b/g/n/ac (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver
Digi CC-WMX-PF58-VM-B			-40 °C	85 °C	802.11a/b/g/n, Bluetooth v4.0	Module	Antenna Not Included, U.FL	17 dBm		150 Mbps	2.4 GHz, 5 GHz	256 MB	256 MB	I2C, I2S, JTAG, PWM, SPI, UART, USB	Bluetooth, WiFi				16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, QPSK	100 mA	406 mA	Card Edge
Digi CC-WMX-L87C-N			-40 °C	85 °C	802.11a/b/g/n/ac, Bluetooth v5.0	Module					800 MHz			Ethernet, GPIO, I2C, I2S, JTAG, PWM, SPI, UART, USB	Bluetooth, WiFi							Surface Mount	1 GB, 4 GB
Digi CC-WMX-PE47-JT-B			-40 °C	85 °C	802.11a/b/g/n	Module	Antenna Not Included, U.FL	17 dBm		150 Mbps	2.4 GHz, 5 GHz			I2C, I2S, JTAG, PWM, SPI, UART, USB	WiFi				16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, QPSK	100 mA	406 mA	Card Edge	128 MB, 128 MB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 357.21

Description

General part information

CC-WMX Series

Bluetooth, WiFi 802.11a/b/g/n, Bluetooth v5.0 Transceiver Module 2.412GHz ~ 2.484GHz, 4.9GHz ~ 5.85GHz Antenna Not Included Surface Mount

Documents

Technical documentation and resources

Digi ConnectCore® Product Comparison

Datasheet

Block Diagram ConnectCore 8

Datasheet
