ST3U
ActiveBusBoard Prototype Systems
BREADBOARD GENERAL PURPOSE PTH
ST3U
ActiveBusBoard Prototype Systems
BREADBOARD GENERAL PURPOSE PTH
Description
General part information
ST3U

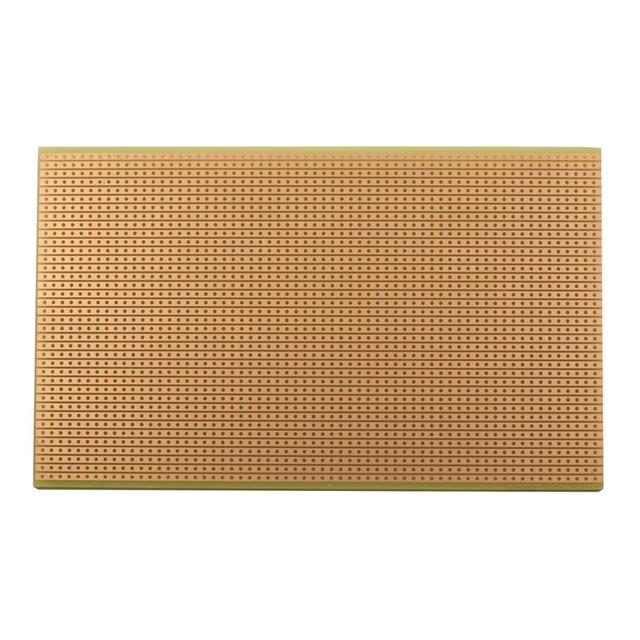

Breadboard, General Purpose Plated Through Hole (PTH) Common Bus 0.1" (2.54mm) Grid
Technical Specifications
Parameters and characteristics for this part
| Specification | ST3U |
|---|---|
| Board Thickness | 0.063 in |
| Circuit Pattern | Common Bus |
| Hole Diameter | 0.037 in |
| Material | FR4 Epoxy Glass |
| Pitch | 0.1 in |
| Pitch (Grid) | 0.1 in |
| Plating | Non-Plated Through Hole (NPTH), Plated Through Hole (PTH) |
| Proto Board Type | General Purpose, Breadboard |
| Size / Dimension Length | 6.3 in |
| Size / Dimension Width | 3.94 in |
