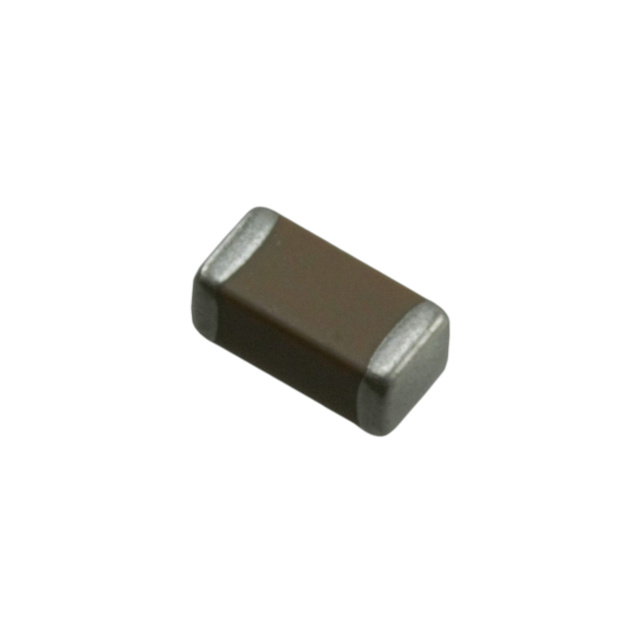

KGM15CT71A475KT
ActiveKYOCERA AVX
CAP CER 4.7UF 10V X7T 0603
KGM15CT71A475KT
ActiveKYOCERA AVX
CAP CER 4.7UF 10V X7T 0603
Description
General part information
KGM15CT71A475KT
4.7 µF ±10% 10V Ceramic Capacitor X7T 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | KGM15CT71A475KT |
|---|---|
| Applications | General Purpose |
| Capacitance | 4.7 µF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.032 in |
| Temperature Coefficient | X7T |
| Thickness (Max) | 0.039 in |
| Tolerance | 10 % |
| Voltage - Rated | 10 V |
