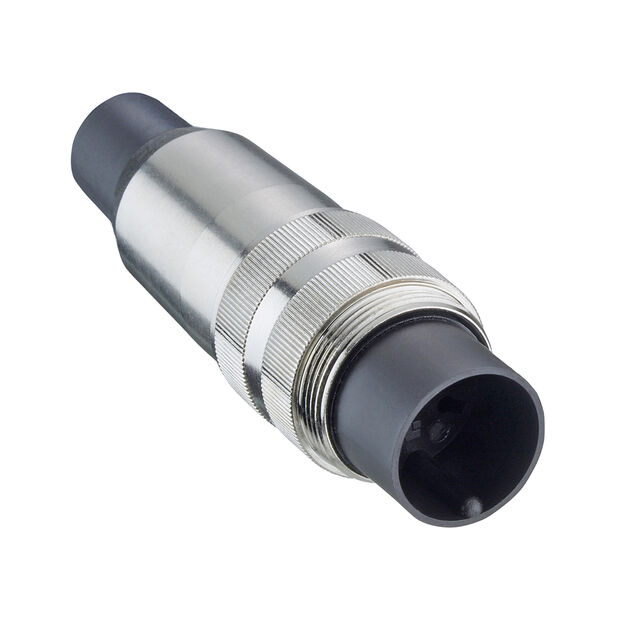

SV 40 C
ActiveLumberg Inc
CIRCULAR CONNECTOR, SV SERIES, CABLE MOUNT RECEPTACLE, 4 CONTACTS
SV 40 C
ActiveLumberg Inc
CIRCULAR CONNECTOR, SV SERIES, CABLE MOUNT RECEPTACLE, 4 CONTACTS
Description
General part information
SV 40 C
4 Position Circular Connector Plug, Male Pins Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | SV 40 C |
|---|---|
| Color | Silver |
| Connector Type | Male Pins, Plug, Plug Housing |
| Contact Type | Crimp |
| Fastening Type | Threaded |
| Features | Strain Relief |
| Housing Color | Black, Silver |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0, UL94 |
| Mounting Type | Free Hanging (In-Line), Cable Mount |
| Number of Positions | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M16 |
| Termination | Crimp |
| Type | For Male Pins |
