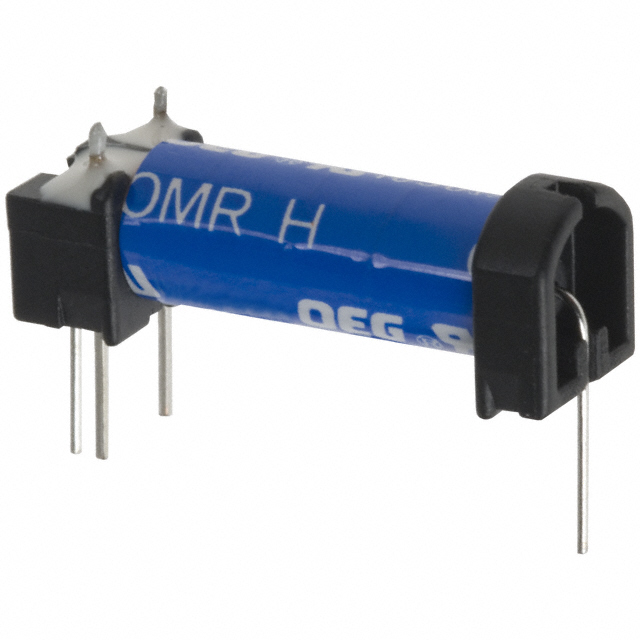

OMR-106H,V000
ObsoleteTE Connectivity AMP Connectors
RELAY REED SPST 500MA 6V
OMR-106H,V000
ObsoleteTE Connectivity AMP Connectors
RELAY REED SPST 500MA 6V
Description
General part information
OMR-106H,V000
RELAY REED SPST 500MA 6V
Technical Specifications
Parameters and characteristics for this part
| Specification | OMR-106H,V000 |
|---|---|
| Coil Current | 24 mA |
| Coil Resistance | 250 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 6 VAC |
| Contact Form | SPST-NO |
| Contact Material | Rhodium (Rh), Ruthenium (Ru) |
| Contact Rating (Current) | 500 mA |
| Form A Count | 1 |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.5 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 1 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Release Time | 0.5 ms |
| Switching Voltage AC (Max) | 120 VAC |
| Switching Voltage DC (Max) | 60 VDC |
| Termination Style | PC Pin |
