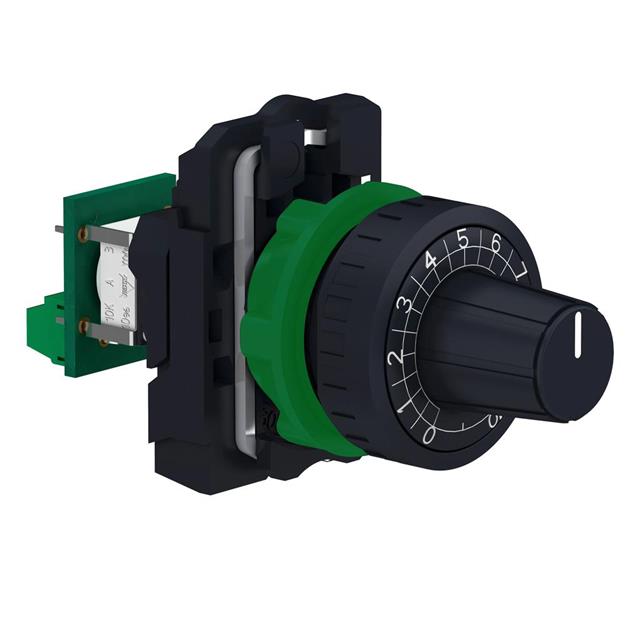

XB5AD912R1K
ActiveSCHNEIDER ELECTRIC
ROTARY POTENTIOMETER, 1 KOHM, 1 TURNS, LINEAR, 1 W, ± 10%, HARMONY XB5 SERIES
XB5AD912R1K
ActiveSCHNEIDER ELECTRIC
ROTARY POTENTIOMETER, 1 KOHM, 1 TURNS, LINEAR, 1 W, ± 10%, HARMONY XB5 SERIES
Description
General part information
XB5AD912R1K
1k Ohm 1 Gang Linear Through Hole Potentiometer Turns Cermet 1W PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | XB5AD912R1K |
|---|---|
| Actuator Diameter | 0.236 in |
| Actuator Length | 1.187 in |
| Actuator Type | Round |
| Adjustment Type | Top Adjustment |
| Built in Switch | None |
| Mounting Type | Through Hole |
| Number of Gangs | 1 |
| Power (Watts) | 1 W |
| Resistance | 1 kOhm |
| Resistive Material | Cermet |
| Size - Body Face Length | 1.634 in |
| Size - Body Face Width | 1.181 in |
| Size - Body Shape | Rectangular |
| Taper | Linear |
| Termination Style | PC Pins |
