FOC-XPF-LC-SMBL
ActivePasternack
XPFIT LC SM BLUE 12PK
FOC-XPF-LC-SMBL
ActivePasternack
XPFIT LC SM BLUE 12PK
Description
General part information
FOC-XPF-LC-SMBL

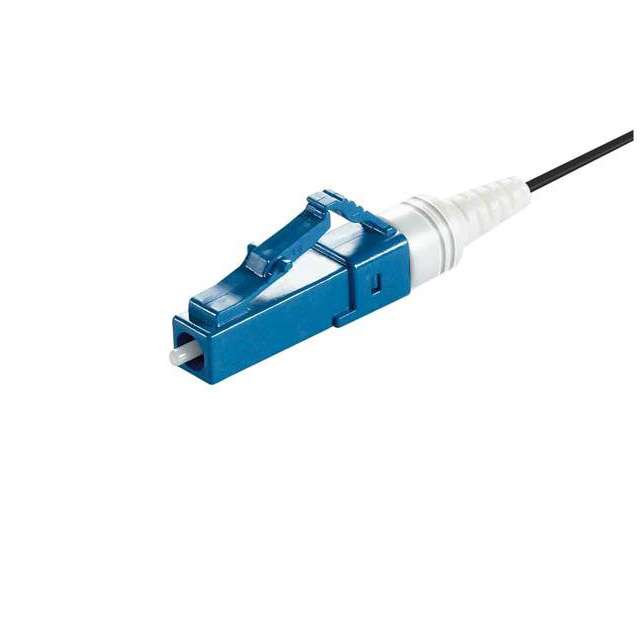

Fiber Optic Plug Connector LC Simplex 125µm Blue
Technical Specifications
Parameters and characteristics for this part
| Specification | FOC-XPF-LC-SMBL |
|---|---|
| Attenuation (Typical) | -0.3 dB |
| Boot Color | White |
| Connector Style | LC |
| Connector Type | Plug |
| Fastening Type | Latch Lock |
| Features | Strain Relief |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 9 µm |
| Housing Color | Blue |
| Mating Cycles | 500 cycles |
| Mode | Singlemode |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -40 °C |
| Reflection | -60 dB |
| Simplex/Duplex | Simplex |
