RIC11-31S15K7-TH
ActiveSame Sky (Formerly CUI Devices)
INCR ENC, MECH, 15 PPR 30 DET, 5
RIC11-31S15K7-TH
ActiveSame Sky (Formerly CUI Devices)
INCR ENC, MECH, 15 PPR 30 DET, 5
Description
General part information

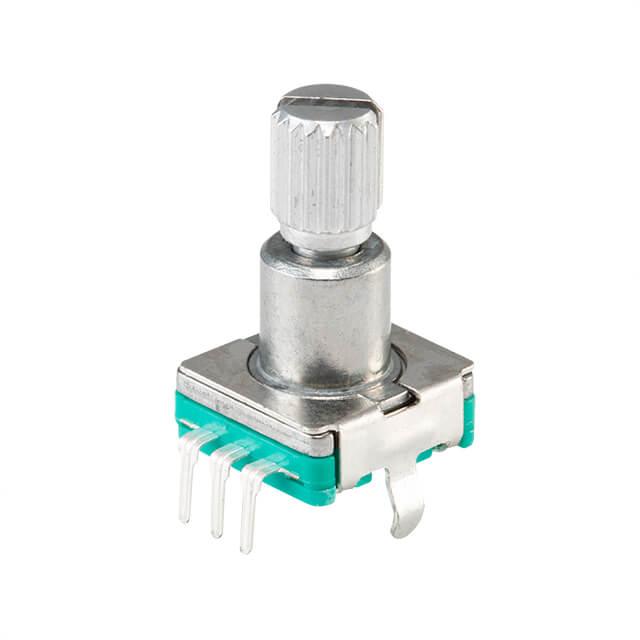

RIC11-31S15K7-TH
Rotary Encoder Incremental 15 Quadrature, 2-Bit Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | RIC11-31S15K7-TH |
|---|---|
| Actuator Diameter | 6 mm |
| Actuator Type | Knurled End |
| Built in Switch | Yes |
| Detent | Yes |
| Encoder Type | Incremental |
| Mounting Type | Through Hole, PCB |
| Orientation | Vertical |
| Output Type | Quadrature, 2-Bit |
| Pulses per Revolution | 15 |
| Rotational Life (Cycles Min) | 100 K |
| Termination Style | PC Pin |
| Voltage - Supply | 5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
