RLW73PA3FR33TE
ActiveTE Connectivity AMP Connectors

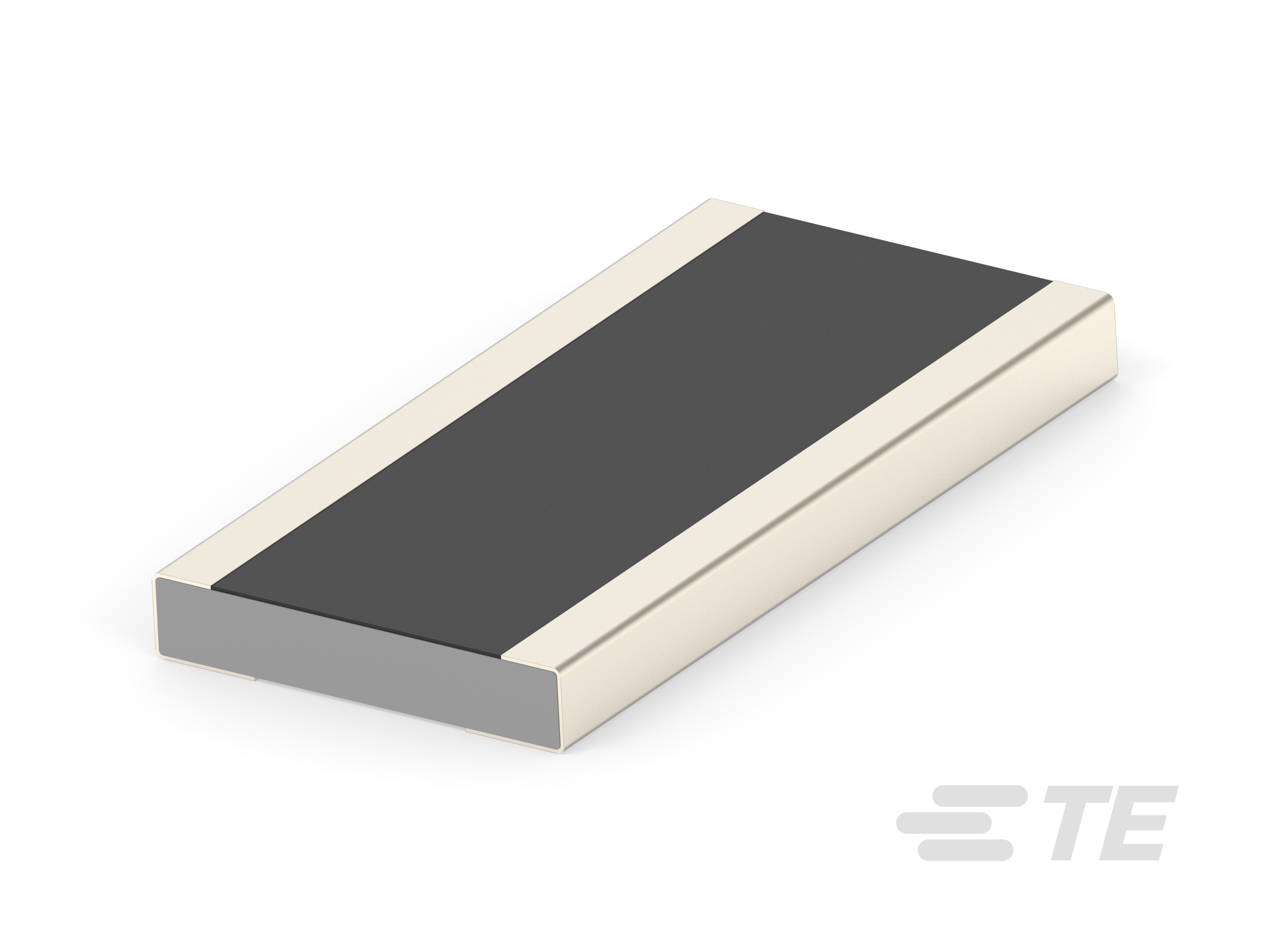

SMD CURRENT SENSE RESISTOR, 0.33 OHM, RLW73P SERIES, 1225 WIDE [3264 METRIC], 3 W, ± 1%
RLW73PA3FR33TE
ActiveTE Connectivity AMP Connectors
SMD CURRENT SENSE RESISTOR, 0.33 OHM, RLW73P SERIES, 1225 WIDE [3264 METRIC], 3 W, ± 1%
Description
General part information
RLW73PA3FR33TE
330 mOhms ±1% 3W Chip Resistor Wide 2512 (6432 Metric), 1225 Current Sense Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RLW73PA3FR33TE |
|---|---|
| Composition | Thick Film |
| Features | Current Sense |
| Height - Seated (Max) | 0.028 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Wide 2512 (6432 Metric), 1225 |
| Package Name | 1225 |
| Power (Watts) | 3 W |
| Resistance | 330 mOhms |
| Size / Dimension Length | 0.122 in |
| Size / Dimension Width | 0.248 in |
| Supplier Device Package | 1225 |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 1 % |
