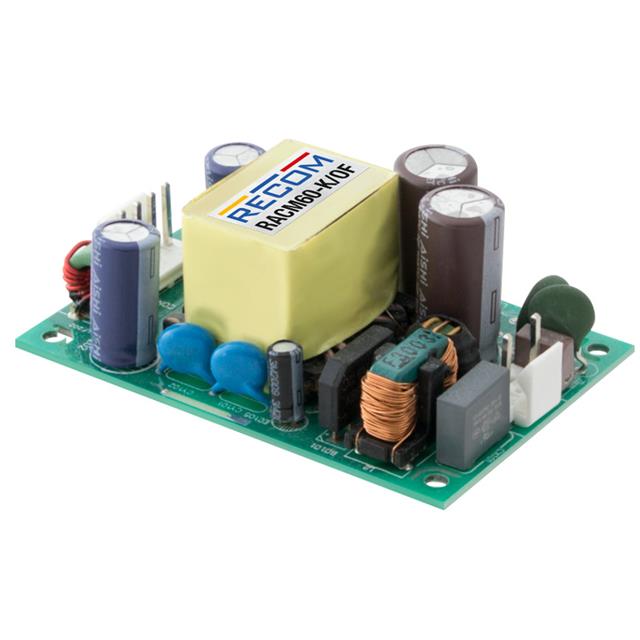

RACM60-05SK/277/OF-T
ActiveRecom Power
AC/DC POWER SUPPLY SINGLE-OUT 5V 8A 40W 6-PIN TRAY
RACM60-05SK/277/OF-T
ActiveRecom Power
AC/DC POWER SUPPLY SINGLE-OUT 5V 8A 40W 6-PIN TRAY
Description
General part information
RACM60-05SK/277/OF-T
Open Frame AC DC Converters 1 Output 5V 8A 80 ~ 264 VAC, 80 ~ 305 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | RACM60-05SK/277/OF-T |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | cURus, CE |
| Current - Output (Max) | 8 A |
| Efficiency | 89 % |
| Line Regulation | 0.5 % |
| Load Regulation (Percent) | 3 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 6-SMD Module |
| Power (Watts) | 40 W |
| Size / Dimension Height | 1.26 in |
| Size / Dimension Length | 3 in |
| Size / Dimension Width | 2 in |
| Standard Number | 60601-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input (Range 1) Maximum | 264 V |
| Voltage - Input (Range 1) Minimum | 80 V |
| Voltage - Input (Range 2) Maximum | 305 VAC |
| Voltage - Input (Range 2) Minimum | 80 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
