UT2020-005

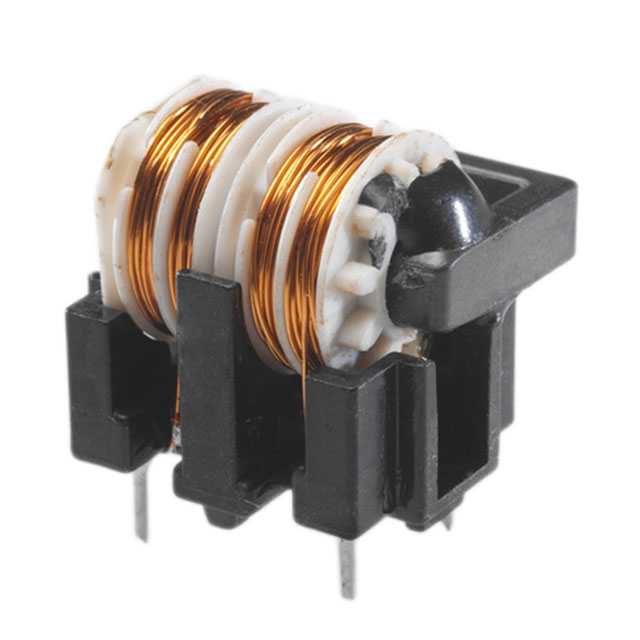

0.45 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1A DCR 130mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | UT2020-005 |
|---|---|
| Approval Agency | CSA, UL, IEC |
| Current Rating (Max) | 1 A |
| DC Resistance (DCR) (Max) | 130 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.787 in |
| Inductance | 0.45 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | 4 PC Pin, Horizontal |
| Package Leads | 4 Leads |
| Package Name | Horizontal |
| Size / Dimension Length | 0.905 in |
| Size / Dimension Width | 0.965 in |
| Voltage Rating - AC | 250 V |
