Specification	FH12-7S-1SVA(54)

Connector/Contact Type	Contacts, 1 Sided, Vertical
Features	Solder Retention, Zero Insertion Force (ZIF)
Flat Flex Type	FFC, FPC
Height Above Board	0.142 in
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	7
Pitch	0.039 in
Termination	Solder

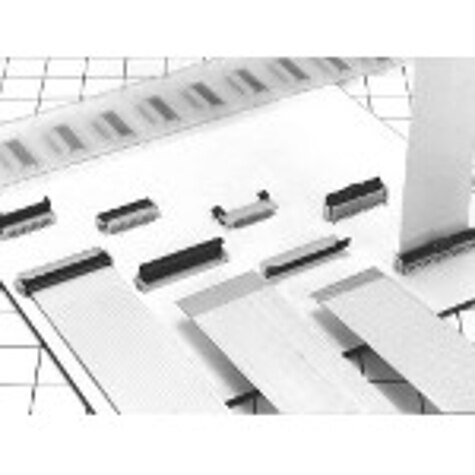

FH12 Series

...

Part	Pitch	Actuator Material	Housing Material	Number of Positions	FFC, FCB Thickness	Locking Feature	Height Above Board	Mounting Type	Contact Material	Voltage Rating	Features	Flat Flex Type	Termination	Cable End Type	Connector/Contact Type	Contact Finish	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Housing Color	Contact Finish Thickness	Mating Cycles	Current Rating	Actuator Color	Number of Positions (Loaded)	Number of Positions (Total)
Hirose Electric Co Ltd FH12A-45S-0.5SH(1)(98)	0.02 in	Polyphenylene Sulfide (PPS)	Nylon PA Polyamide	45	0.3 mm	Flip Lock	0.079 in	Surface Mount	Phosphor Bronze	50 V	Zero Insertion Force (ZIF)	FFC FPC	Solder	Straight	Contacts Top	Gold	-40 °C	85 °C	UL94 V-0	Beige	2 µin	20 cycles	0.5 A	Brown
Hirose Electric Co Ltd FH12-32S-0.5SH(1)(98)	0.02 in	Polyphenylene Sulfide (PPS)	Nylon PA Polyamide	32	0.3 mm	Flip Lock	0.079 in	Right Angle Surface Mount	Phosphor Bronze	50 V	Zero Insertion Force (ZIF)	FFC FPC	Solder	Straight	Bottom Contacts	Gold	-40 °C	85 °C	UL94 V-0	Beige		20 cycles	0.5 A	Brown
Hirose Electric Co Ltd FH12-50S-0.5SVA(98)	0.02 in	Polyphenylene Sulfide (PPS)	Nylon PA Polyamide	50	0.3 mm	Flip Lock	0.142 in	Surface Mount	Phosphor Bronze	50 V	Solder Retention Zero Insertion Force (ZIF)	FFC FPC	Solder	Straight	1 Sided Contacts Vertical	Gold	-40 °C	85 °C	UL94 V-0
Hirose Electric Co Ltd FH12-50(24)SA-1SH(55)	0.039 in	Polyphenylene Sulfide (PPS)	Nylon PA Polyamide		0.3 mm	Flip Lock	0.079 in	Right Angle Surface Mount	Phosphor Bronze	50 V	Solder Retention Zero Insertion Force (ZIF)	FFC FPC	Solder	Straight	Bottom Contacts	Gold	-40 °C	85 °C	UL94 V-0	Beige		20 cycles	0.5 A	Brown	24	50
Hirose Electric Co Ltd FH12-6S-1SH(55)	0.039 in	Polyphenylene Sulfide (PPS)	Nylon PA Polyamide	6	0.3 mm	Flip Lock	0.079 in	Right Angle Surface Mount	Phosphor Bronze	50 V	Solder Retention Zero Insertion Force (ZIF)	FFC FPC	Solder	Straight	Bottom Contacts	Gold	-40 °C	85 °C	UL94 V-0	Beige		20 cycles	0.5 A	Brown
Hirose Electric Co Ltd FH12-17S-0.5SH(1)(98)	0.02 in	Polyphenylene Sulfide (PPS)	Nylon PA Polyamide	17	0.3 mm	Flip Lock	0.079 in	Right Angle Surface Mount	Phosphor Bronze	50 V	Zero Insertion Force (ZIF)	FFC FPC	Solder	Straight	Bottom Contacts	Gold	-40 °C	85 °C	UL94 V-0	Beige		20 cycles	0.5 A	Brown
Hirose Electric Co Ltd FH12-40S-0.5SVA(98)	0.02 in	Polyphenylene Sulfide (PPS)	Nylon PA Polyamide	40	0.3 mm	Flip Lock	0.142 in	Surface Mount	Phosphor Bronze	50 V	Solder Retention Zero Insertion Force (ZIF)	FFC FPC	Solder	Straight	1 Sided Contacts Vertical	Gold	-40 °C	85 °C	UL94 V-0	Beige		20 cycles	0.5 A	Brown
Hirose Electric Co Ltd FH12-11S-1SH(1)(98)	0.039 in	Polyphenylene Sulfide (PPS)	Nylon PA Polyamide	11	0.3 mm	Flip Lock	0.079 in	Right Angle Surface Mount	Phosphor Bronze	50 V	Solder Retention Zero Insertion Force (ZIF)	FFC FPC	Solder	Straight	Bottom Contacts	Gold	-40 °C	85 °C	UL94 V-0	Beige		20 cycles	0.5 A	Brown
Hirose Electric Co Ltd FH12-6S-1SVA(54)	0.039 in			6		Flip Lock	0.142 in	Surface Mount			Solder Retention Zero Insertion Force (ZIF)	FFC FPC	Solder		1 Sided Contacts Vertical				UL94 V-0
Hirose Electric Co Ltd FH12A-34S-0.5SH(1)(98)	0.02 in	Polyphenylene Sulfide (PPS)	Nylon PA Polyamide	34	0.3 mm	Flip Lock	0.079 in	Right Angle Surface Mount	Phosphor Bronze	50 V	Solder Retention Zero Insertion Force (ZIF)	FFC FPC	Solder	Straight	Contacts Top	Gold	-40 °C	85 °C	UL94 V-0	Beige		20 cycles	0.5 A	Brown
