97-4102A-18-1S
ActiveAmphenol Aerospace Operations
MIL-DTL-5015 GENERAL DUTY STYLE
97-4102A-18-1S
ActiveAmphenol Aerospace Operations
MIL-DTL-5015 GENERAL DUTY STYLE
Description
General part information
97-4102A-18-1S

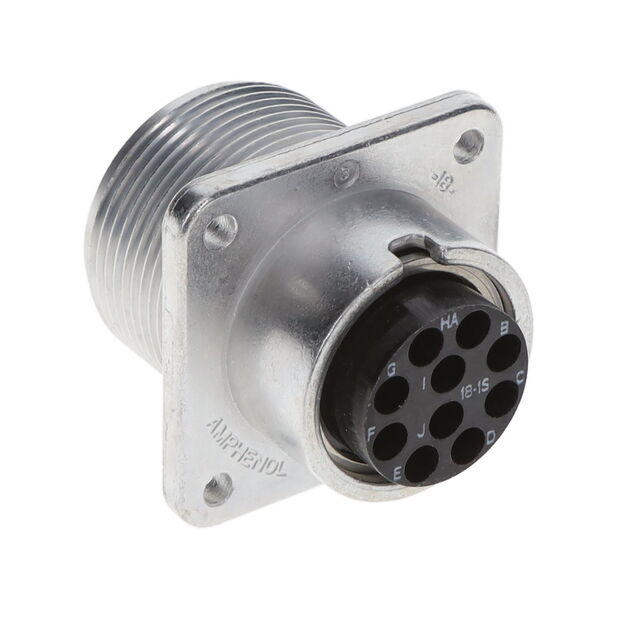

10 Position Circular Connector Receptacle, Female Sockets Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 97-4102A-18-1S |
|---|---|
| Applications | Automotive, Industrial |
| Color | Olive Drab |
| Connector Type | Receptacle Housing, Receptacle, Female Sockets |
| Contact Material | Copper Alloy |
| Current Rating | 13 A |
| Fastening Type | Threaded |
| Insert Material | Neoprene |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Positions | 10 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert Length | 18 mm |
| Shell Size - Insert Width | 1 mm |
| Shielding | Unshielded |
| Termination | Crimp |
