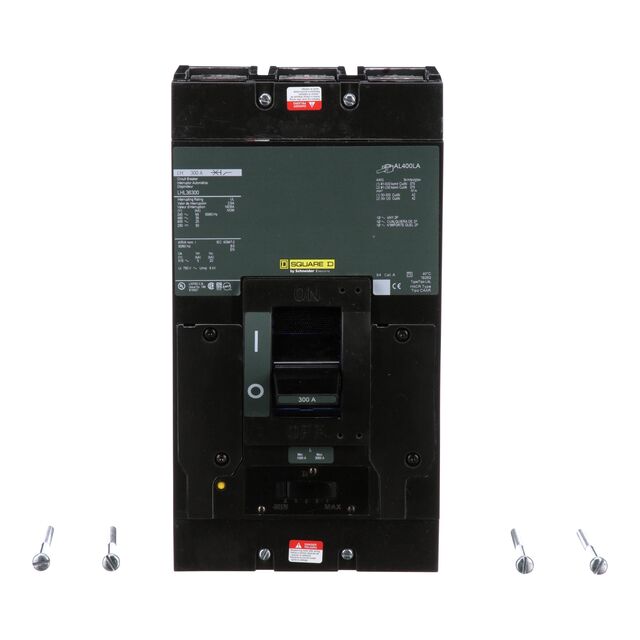

LHL36300
ActiveSCHNEIDER ELECTRIC
MOLDED CASE CIRCUIT BREAKER 600V
LHL36300
ActiveSCHNEIDER ELECTRIC
MOLDED CASE CIRCUIT BREAKER 600V
Description
General part information
LHL36300
Circuit Breaker Thermal Magnetic 300A 600 V AC 250 V DC Lever Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | LHL36300 |
|---|---|
| Actuator Type | Lever |
| Approval Agency | CSA, UL, IEC |
| Breaker Type | Thermal Magnetic |
| Current Rating | 300 A |
| Illumination | None |
| Mounting Type | Panel Mount |
| Number of Poles | 3 |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
