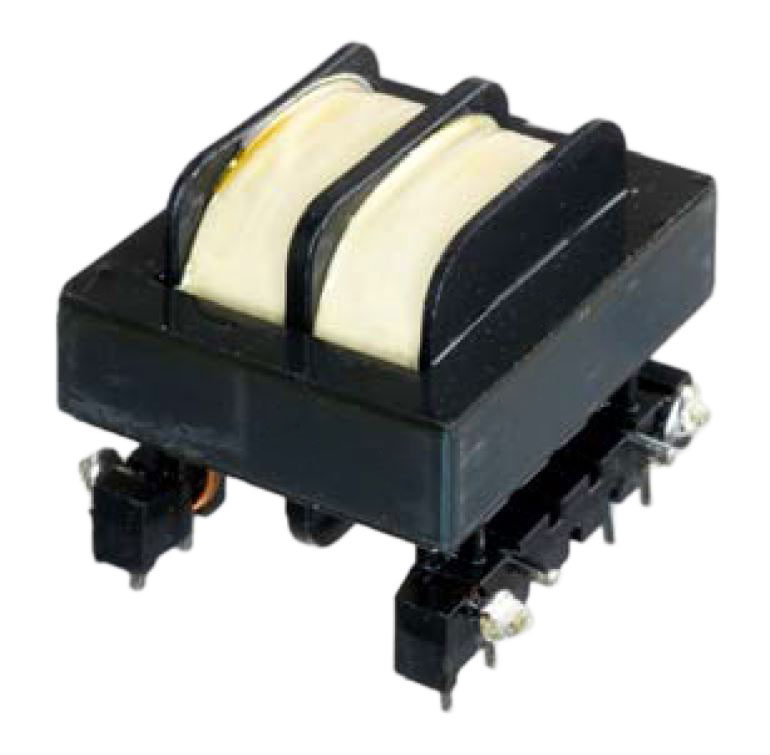

CME375-4-B
ActiveTriad Magnetics
CMC 17.8MH 2.7A 2LN TH ESD
CME375-4-B
ActiveTriad Magnetics
CMC 17.8MH 2.7A 2LN TH ESD
Description
General part information
CME375-4-B
17.8 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 2.7A DCR 196mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CME375-4-B |
|---|---|
| Approval Agency | IEC, VDE, CSA, UL |
| Current Rating (Max) | 2.7 A |
| DC Resistance (DCR) (Max) | 196 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.18 in |
| Inductance | 17.8 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 1.5 in |
| Size / Dimension Width | 1.26 in |
| Voltage Rating - AC | 250 V |
