0900BL18B0100001E
ActiveJohanson Technology Inc.

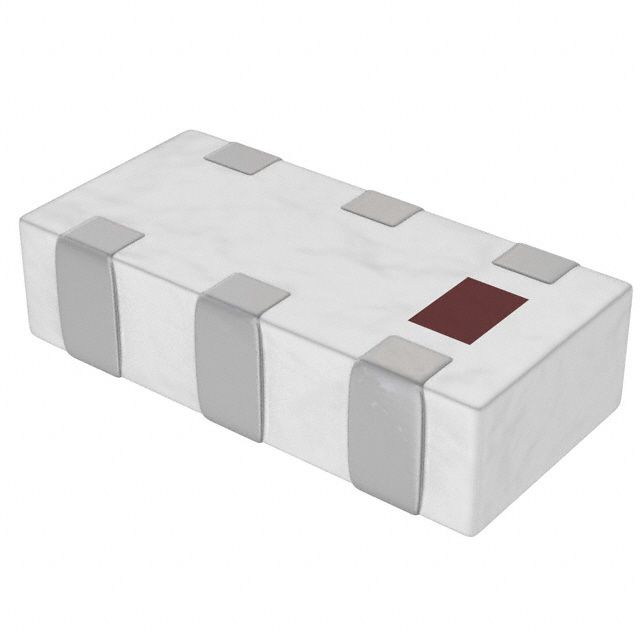

BALUN 800MHZ-1GHZ 50/100 1206
0900BL18B0100001E
ActiveJohanson Technology Inc.
BALUN 800MHZ-1GHZ 50/100 1206
Description
General part information
0900BL18B0100001E
RF Balun 800MHz ~ 1GHz 50 / 100Ohm 1206 (3216 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 0900BL18B0100001E |
|---|---|
| Frequency Range (Max) | 1 GHz |
| Frequency Range (Min) | 800 MHz |
| Impedance - Balanced | 100 Ohm |
| Impedance - Unbalanced | 50 Ohm |
| Insertion Loss (Max) | 1 dB |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Phase Difference | 180 ° |
| Phase Difference Tolerance | 10 ° |
| Return Loss (Min) | 9.5 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
