AAT3783AIRN-4.2-T1

Obsolete

Skyworks Solutions Inc.

IC BATT CHG LI-ION 1CELL 16TDFN

Search across all available documentation for this part.

Obsolete

Skyworks Solutions Inc.

IC BATT CHG LI-ION 1CELL 16TDFN

Technical Specifications

Parameters and characteristics for this part

Specification	AAT3783AIRN-4.2-T1

Battery Chemistry	Lithium Ion/Polymer
Battery Pack Voltage	4.2 V
Charge Current - Max [Max]	1 A
Current - Charging	Constant - Programmable
Fault Protection	Over Temperature, Over Voltage, Short Circuit, Over Current
Interface	USB
Mounting Type	Surface Mount
Number of Cells	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

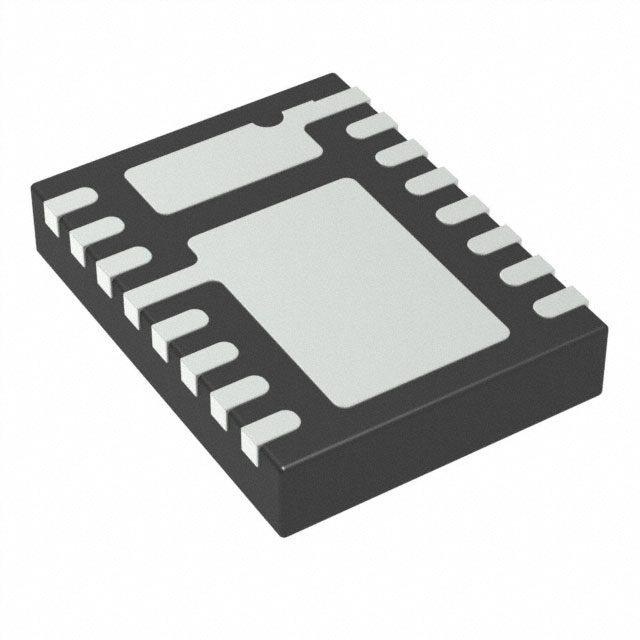

Package / Case	16-PowerWFDFN
Programmable Features	Current
Supplier Device Package	16-TDFN (3x4)
Voltage - Supply (Max) [Max]	7.5 V

Part	Number of Cells	Voltage - Supply (Max) [Max]	Current - Charging	Package / Case	Battery Pack Voltage	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Charge Current - Max [Max]	Fault Protection	Supplier Device Package	Programmable Features	Battery Chemistry	Interface
Skyworks Solutions Inc. AAT3783AIRN-4.2-T1	1	7.5 V	Constant - Programmable	16-PowerWFDFN	4.2 V	Surface Mount	85 °C	-40 °C	1 A	Over Current Over Temperature Over Voltage Short Circuit	16-TDFN (3x4)	Current	Lithium Ion/Polymer	USB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Charger IC Lithium Ion/Polymer 16-TDFN (3x4)
