Specification	JMXFH1G05MSUDSU

Applications	Medical, Industrial, Instrumentation
Backshell Material, Plating	Polyetherimide (PEI)
Color	Light Gray
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	19.7 µin
Contact Material	Copper Nickel
Current Rating	7 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection Description	Waterproof, Dust Tight, Dust Protected
Ingress Protection IP Rating	IP50, IP68
Insert Material	Polyetheretherketone, PEEK
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	5
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Orientation	G
Primary Material	Plastic
Shell Material	Polyetherimide (PEI)
Shell Size - Insert (Maximum)	5
Shell Size - Insert (Minimum)	1
Shielding	Unshielded
Termination	Solder Cup
Voltage Rating	230 V

JMXFH1 Series

Part	Contact Finish Thickness - Mating	Insert Material	Ingress Protection IP Rating	Ingress Protection Description	Voltage Rating	Shielding	Contact Finish - Mating	Color	Applications	Mounting Type	Connector Type	Contact Material	Material Flammability Rating	Backshell Material, Plating	Features	Fastening Type	Shell Material	Current Rating	Termination	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Primary Material	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Orientation
Amphenol Aerospace Operations JMXFH1G03FSUDSM	19.7 µin	PEEK Polyetheretherketone	IP50 IP68	Dust Protected Dust Tight Waterproof	230 V	Unshielded	Gold	Brown Light Gray	Industrial Instrumentation Medical	Free Hanging (In-Line)	Female Sockets Plug	Copper Nickel	UL94 V-0	Polyetherimide (PEI)	Backshell	Push-Pull	Polyetherimide (PEI)	9 A	Solder Cup	3	125 °C	-40 °C	Plastic	1	3	G
Amphenol Aerospace Operations JMXFH1G05FSUDSU	19.7 µin	PEEK Polyetheretherketone	IP50 IP68	Dust Protected Dust Tight Waterproof	230 V	Unshielded	Gold	Light Gray	Industrial Instrumentation Medical	Free Hanging (In-Line)	Female Sockets Plug	Copper Nickel	UL94 V-0	Polyetherimide (PEI)	Backshell	Push-Pull	Polyetherimide (PEI)	7 A	Solder Cup	5	125 °C	-40 °C	Plastic	1	5	G
Amphenol Aerospace Operations JMXFH1G02MCUDSU	19.7 µin	PEEK Polyetheretherketone	IP50 IP68	Dust Protected Dust Tight Waterproof	300 VAC/DC	Unshielded	Gold	Light Gray	Industrial Instrumentation Medical	Free Hanging (In-Line)	Male Pins Plug	Copper Nickel	UL94 V-0	Polyetherimide (PEI)	Backshell	Push-Pull	Polyetherimide (PEI)	10 A	Crimp	2	125 °C	-40 °C	Plastic	1	2	G
Amphenol Aerospace Operations JMXFH1G05MCUDSU	19.7 µin	PEEK Polyetheretherketone	IP50 IP68	Dust Protected Dust Tight Waterproof	230 V	Unshielded	Gold	Light Gray	Industrial Instrumentation Medical	Free Hanging (In-Line)	Male Pins Plug	Copper Nickel	UL94 V-0	Polyetherimide (PEI)	Backshell	Push-Pull	Polyetherimide (PEI)	7 A	Crimp	5	125 °C	-40 °C	Plastic	1	5	G

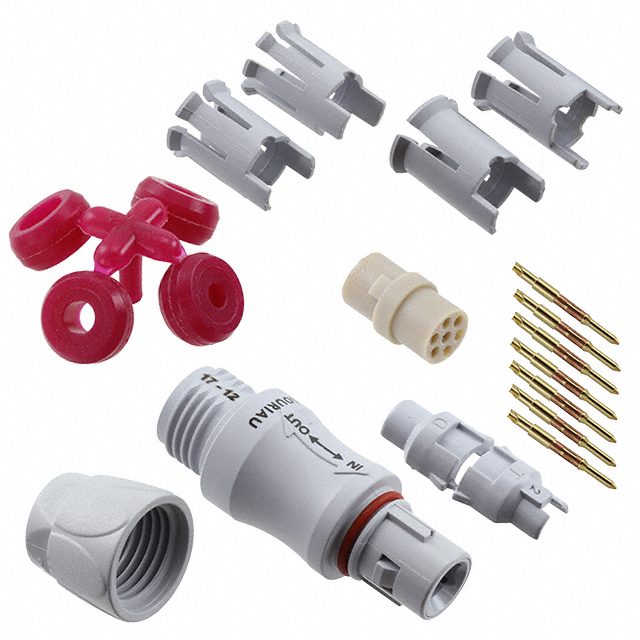

Amphenol Aerospace Operations JMXFH1G07MSUDSU	19.7 µin	PEEK Polyetheretherketone	IP50 IP68	Dust Protected Dust Tight Waterproof	160 V	Unshielded	Gold	Light Gray	Industrial Instrumentation Medical	Free Hanging (In-Line)	Male Pins Plug	Copper Nickel	UL94 V-0	Polyetherimide (PEI)	Backshell	Push-Pull	Polyetherimide (PEI)	5 A	Solder Cup	7	125 °C	-40 °C	Plastic	1	7	G
Amphenol Aerospace Operations JMXFH1G04MCUDSU	19.7 µin	PEEK Polyetheretherketone	IP50 IP68	Dust Protected Dust Tight Waterproof	230 V	Unshielded	Gold	Light Gray	Industrial Instrumentation Medical	Free Hanging (In-Line)	Male Pins Plug	Copper Nickel	UL94 V-0	Polyetherimide (PEI)	Backshell	Push-Pull	Polyetherimide (PEI)	8 A	Crimp	4	125 °C	-40 °C	Plastic	1	4 S	G
Amphenol Aerospace Operations JMXFH1G08MSUDSU	19.7 µin	PEEK Polyetheretherketone	IP50 IP68	Dust Protected Dust Tight Waterproof	100 VAC	Unshielded	Gold	Light Gray	Industrial Instrumentation Medical	Free Hanging (In-Line)	Male Pins Plug	Copper Nickel	UL94 V-0	Polyetherimide (PEI)	Backshell	Push-Pull	Polyetherimide (PEI)	5 A	Solder Cup	8	125 °C	-40 °C	Plastic	1	8	G
Amphenol Aerospace Operations JMXFH1G10MSUDSU	19.7 µin	PEEK Polyetheretherketone	IP50 IP68	Dust Protected Dust Tight Waterproof	100 VAC	Unshielded	Gold	Light Gray	Industrial Instrumentation Medical	Free Hanging (In-Line)	Male Pins Plug	Copper Nickel	UL94 V-0	Polyetherimide (PEI)	Backshell	Push-Pull	Polyetherimide (PEI)	2.5 A	Solder Cup	10	125 °C	-40 °C	Plastic	1	10 S	G

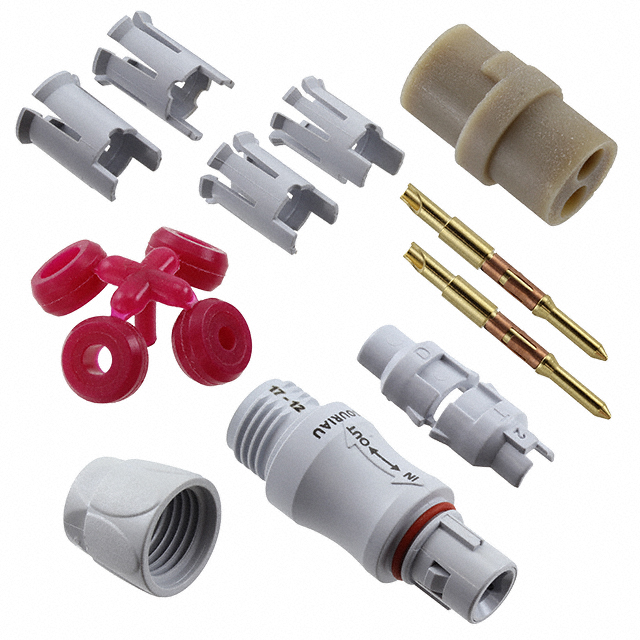

Amphenol Aerospace Operations JMXFH1G02MSUDSU	19.7 µin	PEEK Polyetheretherketone	IP50 IP68	Dust Protected Dust Tight Waterproof	300 VAC/DC	Unshielded	Gold	Light Gray	Industrial Instrumentation Medical	Free Hanging (In-Line)	Male Pins Plug	Copper Nickel	UL94 V-0	Polyetherimide (PEI)	Backshell	Push-Pull	Polyetherimide (PEI)	10 A	Solder Cup	2	125 °C	-40 °C	Plastic	1	2	G
Amphenol Aerospace Operations JMXFH1G08MSUDSM	19.7 µin	PEEK Polyetheretherketone	IP50 IP68	Dust Protected Dust Tight Waterproof	100 VAC	Unshielded	Gold	Brown Light Gray	Industrial Instrumentation Medical	Free Hanging (In-Line)	Male Pins Plug	Copper Nickel	UL94 V-0	Polyetherimide (PEI)	Backshell	Push-Pull	Polyetherimide (PEI)	5 A	Solder Cup	8	125 °C	-40 °C	Plastic	1	8	G
