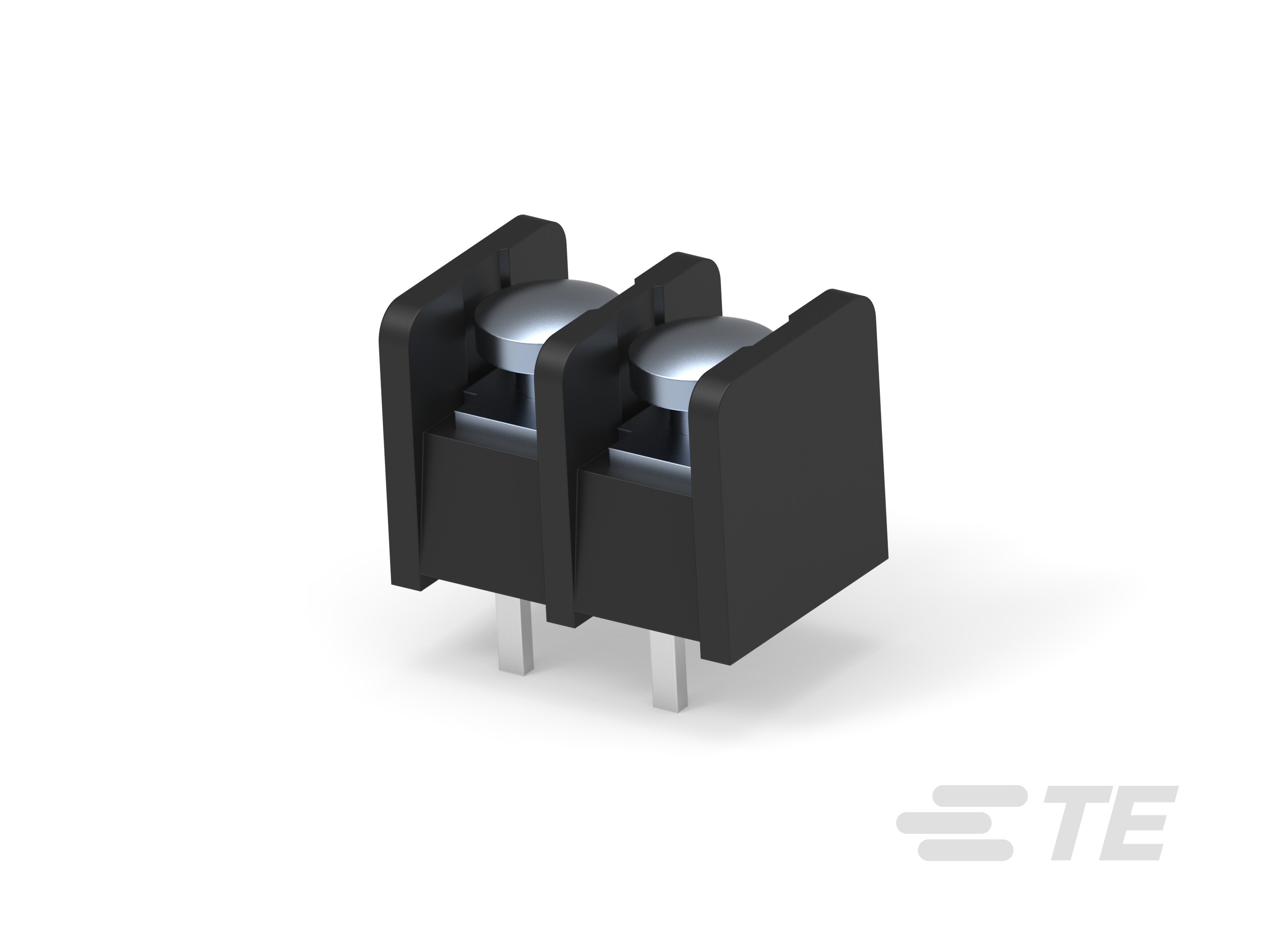

Specification	4DB-P107-02

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin
Color	Black
Current Rating	20 A
Material - Insulation	Polyamide, PA, Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Circuits	2
Number of Rows	1
Number of Wire Entries	2
Operating Temperature	105 °C
Pitch	0.325 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Clear Chromate, Zinc
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	150 VDC
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	12 AWG

BUCHANAN 4DB Series Series

Part	Material - Insulation	Material Flammability Rating	Terminal Screw Material	Terminal Screw Finish	Operating Temperature	Mounting Type	Barrier Type	Pitch	Top Termination	Number of Rows	Number of Wire Entries	Number of Circuits	Terminal Block Type	Voltage Rating	Bottom Termination	Color	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Current Rating
TE Connectivity AMP Connectors 796658-1	Thermoplastic	UL94 V-0	Steel	Clear Chromate Zinc	105 °C	Through Hole	2 Wall (Dual)	0.325 in	Screws with Captive Plate	1	7	7	Barrier Block	150 VDC	Wire Wrap	Black	12 AWG	22 AWG	20 A
TE Connectivity AMP Connectors 2-796658-3	Thermoplastic	UL94 V-0	Brass	Nickel	105 °C	Through Hole	2 Wall (Dual)	0.325 in	Screws with Captive Plate	1	14	14	Barrier Block	150 VDC	PC Pin	Black	12 AWG	22 AWG	20 A
TE Connectivity AMP Connectors 796658-2	Thermoplastic	UL94 V-0	Steel	Clear Chromate Zinc	105 °C	Through Hole	2 Wall (Dual)	0.325 in	Screws with Captive Plate	1	21	21	Barrier Block	150 VDC	PC Pin	Black	12 AWG	22 AWG	20 A
